System Configuration Stack

Overview

The RAPIDSEA System Configuration Stack enables developers to rapidly incorporate device configuration format and update parameters.
System configuration parameters are required in embedded devices and are also referred to as system settings. Based on those system settings, the device can enable and control the relevant hardware and software processes. The configuration can be done through any interface, depending on the device interface selected and availability.

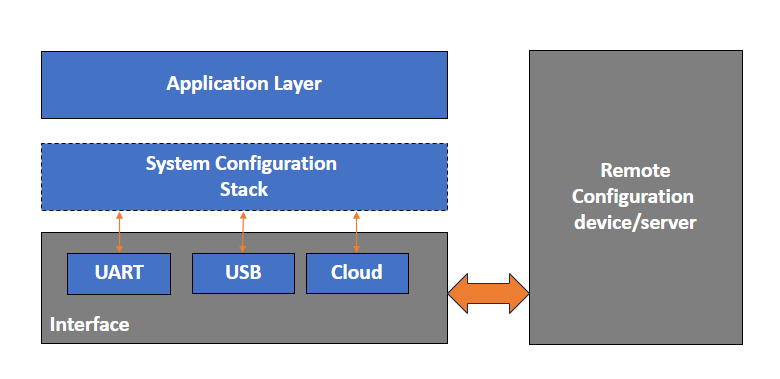

System configuration enables connectivity with remote device using through a dedicated interface selection and communication protocol . The below diagram depicts the stack with its underlying physical connection along with higher level modules.
The below diagram captures the high level block diagram of the RAPIDSEA System configuration module and how it interfaces with other modules.

The below table captures the function that are to be called from the application logic.

API Functions
Function	Description
rs_sys_conf_init	To initialize the system configuration stack
rs_sys_conf_register_callback	To register the callback function to be called on events
rs_sys_conf_data_begin	To handle the system configuration begin packet process
rs_sys_conf_data	To validate the system configuration data
rs_sys_conf_data_end	To handle the process of the system configuration end packet
rs_sys_conf_set_status	To update system configuration status
rs_sys_conf_get_status	To gets the System configuration status
rs_sys_conf_callback	Callback function format

Documentation from the relevant header as follows:

Warning

doxygenfile: Cannot find file “rs_sys_conf.h
