RAPIDSEA ISO13400 DoIP Stack

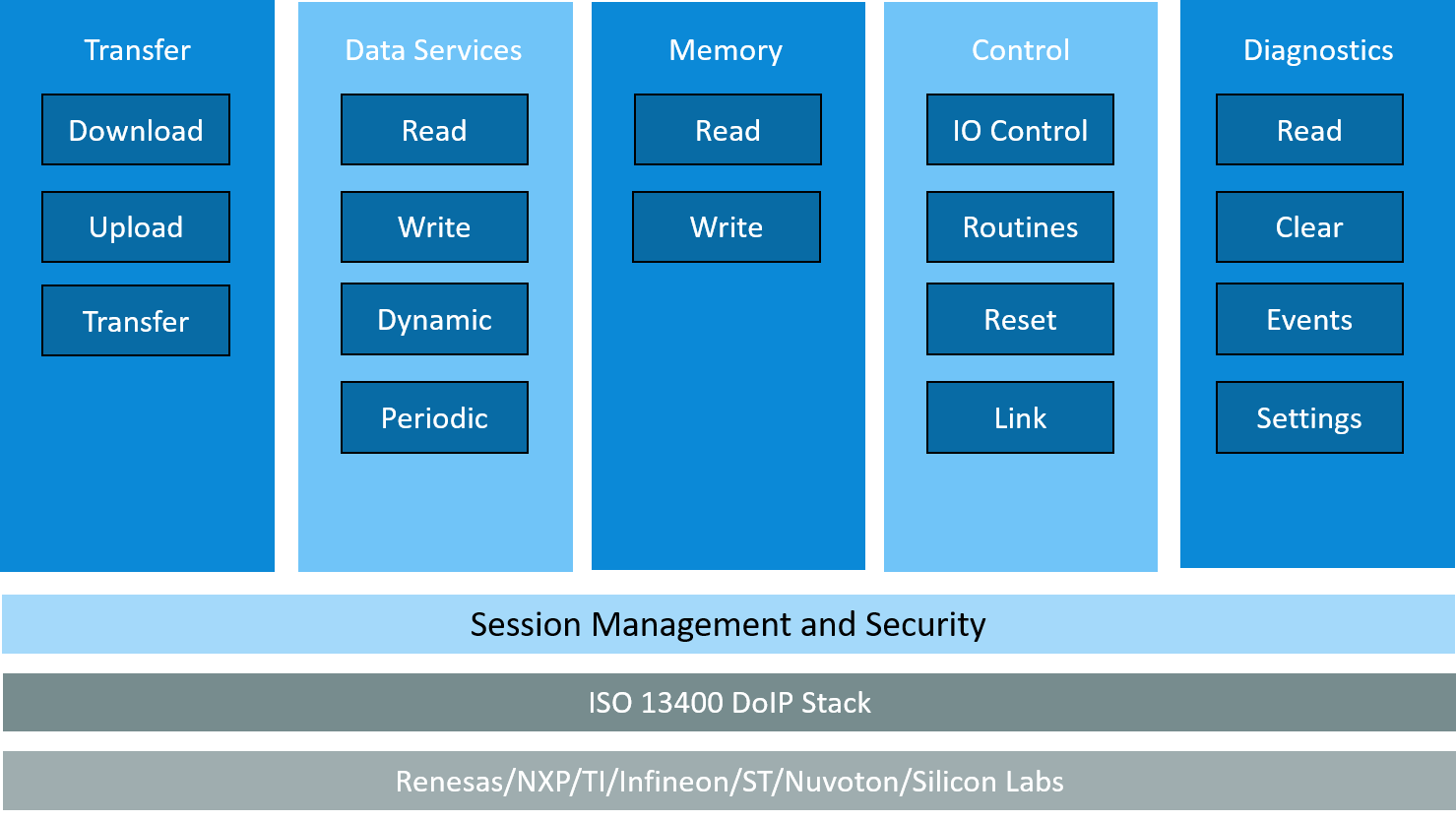

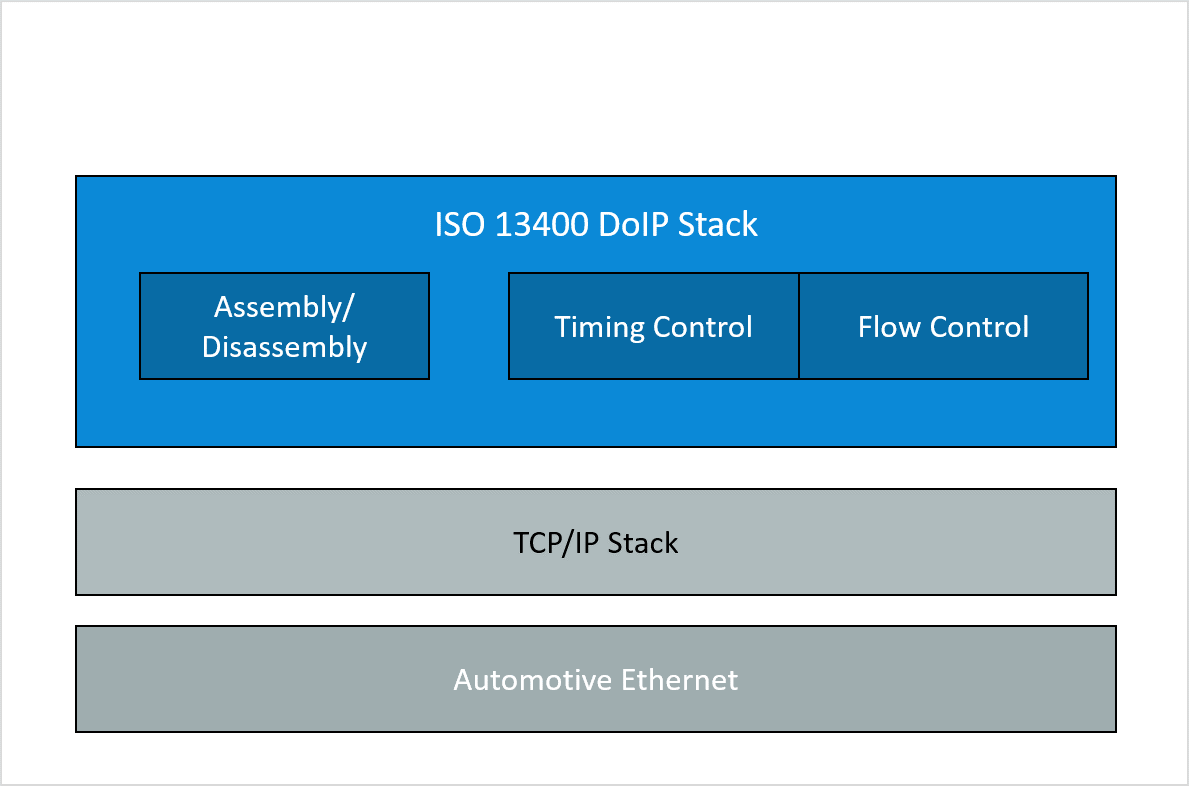

ISO13400 DoIP Stack Overview

In the evolving landscape of automotive Ethernet, the ISO 13400 DoIP Stack (Diagnostics over Internet Protocol) stands as a cornerstone for modern vehicle diagnostics. Defined by the ISO 13400-2 standard (updated in 2019), DoIP enables the Unified Diagnostic Services (UDS) protocol to operate over high-speed IP-based networks, replacing legacy CAN or FlexRay limitations.

At its core, DoIP facilitates bidirectional, secure communication between off-board diagnostic testers and in-vehicle Electronic Control Units (ECUs). Whether over a local LAN in a service bay, the internet for remote over-the-air (OTA) updates, or a wired Ethernet backbone at 100 Mbps, this Automotive DoIP Protocol ensures low-latency, reliable data exchange. Imagine flashing a 4 GB ECU software package in under 10 minutes – that's the power of DoIP's multi-frame segmentation and parallel session support.

For developers, RAPIDSEA's implementation goes beyond compliance: it abstracts complex IP routing, entity identification, and power mode negotiations into simple APIs. This makes it indispensable for Software-Over-The-Air (SOTA) updates, end-of-line (EOL) testing, and telematics-driven fleet management. As vehicles shift to zonal architectures and 800 Mbps Ethernet backbones, investing in a robust ISO 13400 DoIP Stack like RAPIDSEA's future-proofs your stack against emerging standards like IEEE 802.3bw.

Supported DoIP Payload Types

RAPIDSEA covers all ISO 13400 payloads, mandatory and optional, ensuring complete protocol fidelity:

• Generic DoIP Header NACK – Efficient error handling for corrupted headers without session drops.
• Vehicle Identification Request (Basic) – Quick entity discovery for initial tester-ECU handshakes.
• Vehicle Identification with EID – Enhanced identification using Electronic IDs for secure multi-ECU networks.
• Vehicle Identification with VIN – VIN-based matching for precise vehicle-model diagnostics.
• Vehicle Announcement/Response – Broadcasts ECU capabilities; supports suppression for low-bandwidth scenarios.
• Routing Activation Request/Response – Establishes secure logical channels; handles all ISO response codes (0x00-0xFF).
• Alive Check Request/Response – Heartbeat monitoring to detect network disruptions in real-time.
• Diagnostic Power Mode Info Request/Response – Queries ECU sleep/wake states for energy-efficient ops.
• Diagnostic Message + ACK/NACK – Core UDS transport with positive/negative acknowledgments for robust flow control.

This exhaustive support minimizes custom coding, letting you focus on application logic.
