Understanding Automotive CAN IVN

In the fast-evolving world of automotive engineering, the Controller Area Network (CAN) protocol serves as the unbreakable backbone of In-Vehicle Network (IVN) communications. Defined by ISO11898 standards, CAN enables real-time data exchange between Electronic Control Units (ECUs), ensuring synchronized operations across powertrain, chassis, body, and infotainment systems. Messages are meticulously formatted using Vector DBC files, which define signals, messages, and parameters for precise transmission and reception.

At Embien, our RAPIDSEA Automotive CAN IVN Stack transforms this complexity into simplicity. With decades of expertise in industrial and automotive protocols, we've engineered a stack that decodes high-speed CAN traffic effortlessly, even under peak loads. Whether you're developing next-gen Software-Defined Vehicles (SDVs) or retrofitting legacy systems, our stack guarantees compliance, reliability, and performance.

Key Features of RAPIDSEA Automotive CAN IVN Stack

Our stack is designed for performance, portability, and scalability, offering features such as:

Fully Modular Architecture icon

Fully Modular Architecture

Scalable design allows you to enable only the features you need, saving precious flash memory on constrained MCUs.

Hardware-Agnostic Portability icon

Hardware-Agnostic Portability

A small footprint design customized for all major automotive MCU families including Renesas RL78/RH850, NXP S32K/i.MX RT, and Infineon Traveo S6J3360.

High-Throughput & Low Latency icon

High-Throughput & Low Latency

Optimized critical sections and minimal software overhead ensure the stack handles 100% bus loads without dropping frames.

Dual Identifier Support icon

Dual Identifier Support

Seamless support for both Standard (11-bit) and Extended (29-bit) CAN identifier formats within the same network.

Intelligent Filtering icon

Intelligent Filtering

Leverages native hardware filtering capabilities of the MCU combined with smart software algorithms to process only relevant messages, reducing CPU load.

Robust Error Handling icon

Robust Error Handling

Built-in mechanisms to detect, report, and recover from CAN bus errors, ensuring ISO 26262 functional safety readiness.

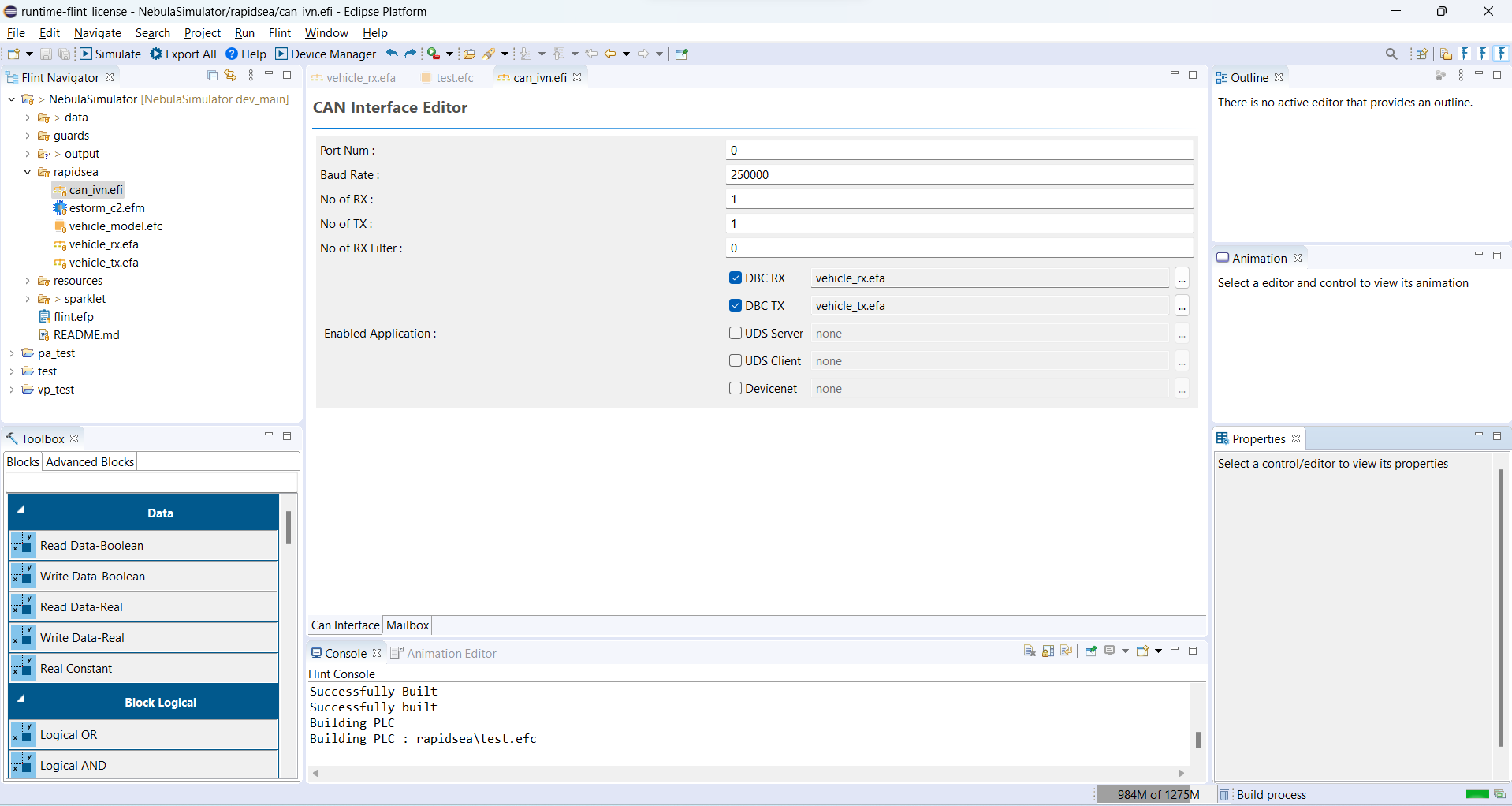

Zero-Code Integration with Flint CAN IVN Configurator

Why spend weeks writing parsing code when you can generate it in seconds? Embien offers the Flint CAN IVN Configurator, a powerful companion tool that automates the most tedious parts of network stack integration.

One-Step Import

Simply load your standard .dbc file (compatible with output from Elektrobit Tresos, Davinci Autosar, Simulink).

Intelligent Selection

Visually select the specific signals and messages your ECU needs to Tx/Rx.

Auto-Code Generation

The tool generates highly optimized C configuration files ready for your target MCU.

Instant Deployment

Generated code integrates seamlessly with the RAPIDSEA stack, invoking callbacks automatically upon signal reception or timeouts.

Industry Validated

The generated configurations and stack behavior are validated with Vector CAN analyzers and Peak PCAN USB adapters, ensuring your implementation passes rigorous standard conformance tests.

Additional Capabilities

Filter customization, mailbox setup, and multi-ECU support.

Unique Advantages for Automotive Developers

RAPIDSEA Automotive CAN IVN stack enables:
Faster time-to-market

Faster time-to-market for automotive ECUs.

Reduced development complexity

Reduced development and integration complexity.

High reliability

High reliability across multiple platforms.

Compliance with automotive standards

Easy compliance with automotive standards & ISO11898.

Use Cases for Automotive CAN IVN Stack

Our RAPIDSEA CAN IVN stack has been successfully deployed in:
01
Electric Vehicle Battery Management Systems (BMS)

In EVs, the BMS must broadcast cell voltages and temperatures to the main VCU in real-time. RAPIDSEA ensures this critical data is prioritized and transmitted deterministically, ensuring safety and optimal range calculation.

02
Digital Instrument Clusters

Clusters receive thousands of signals—speed, RPM, navigation, infotainment metadata. Our stack’s high-throughput filtering ensures the dashboard updates smoothly without lag, providing a premium user experience.

03
Telematics & Remote Diagnostics

Telematics units need to "listen" to the entire vehicle network to capture diagnostic trouble codes (DTCs). RAPIDSEA’s integration with UDS and ISO-TP stacks makes extracting and uploading this data to the cloud seamless.

04
Body Control Modules (BCM)

From controlling windows to locking doors, BCMs rely on instant response times. Our stack’s low-latency architecture ensures that when a user presses a button, the vehicle responds instantly.

A Complete Protocol Stack

RAPIDSEA UDS Stack

The standard for vehicle diagnostics. Our UDS stack enables fault diagnosis, routine testing, and Firmware Over-The-Air (FOTA) updates. It supports complex services like Read/Write Data by Identifier, Security Access, and DTC management, ensuring your ECUs are service-ready. Leverage it to enable efficient troubleshooting and maintenance in your automotive systems.

Know More

RAPIDSEA J1939 Stack

Built for heavy-duty vehicles (trucks, buses, off-highway), enabling seamless data exchange between ECUs. This robust stack implements the full J1939 standard, including the Transport Layer (handling messages > 8 bytes), Application Layer, & network management. It offers features like error handling & security mechanisms, making it a reliable choice for automotive manufacturers & suppliers.

Know More

RAPIDSEA OBD2 Stack

Mandatory for emission-related diagnostics, enabling seamless communication between vehicles & diagnostic tools. It offers a scalable solution that supports various diagnostic protocols & standards, and provides a plug-and-play solution for retrieving standard PIDs, monitoring readiness status, & clearing trouble codes, making it perfect for telematics units & regulatory compliance.

Know More

FAQs

A software library that enables communication between ECUs in vehicles using the CAN protocol.

Want to discover how some OEMs quickly captured in-vehicle network in clusters and TCUs?

Get in touch with our automotive CAN IVN stack team now
