Automotive Communication Landscape – Why Protocol Stacks Matter

The automotive industry employs a wide range of communication protocols, each designed for a specific purpose; diagnostics, calibration, in-vehicle networking, infotainment, navigation, or service-oriented communication. As vehicles evolve toward connected, electric, and software-defined platforms, the complexity of managing these protocols increases significantly.

RAPIDSEA addresses this challenge by offering modular, interoperable automotive protocol stacks that can be deployed individually or combined seamlessly. This allows architects to build flexible ECU and vehicle architectures that adapt to current and future requirements, including CAN-based legacy systems and Ethernet-based next-generation platforms.

All RAPIDSEA stacks are validated against real-world automotive scenarios and industry-standard tools, ensuring predictable behavior in production environments.

Platform Flexibility, Licensing, & Compliance

Hardware Agnostic Architecture

Ported to leading MCUs including Renesas, Texas Instruments, NXP, ST, Silicon Labs, Infineon, and Nuvoton.

Zero Royalty Model

RAPIDSEA offers a one-time licensing model, significantly reducing the Total Cost of Ownership (TCO) for high-volume production.

MISRA-C Compliant

Built from the ground up following rigorous safety and quality standards to ensure fail-safe operation.

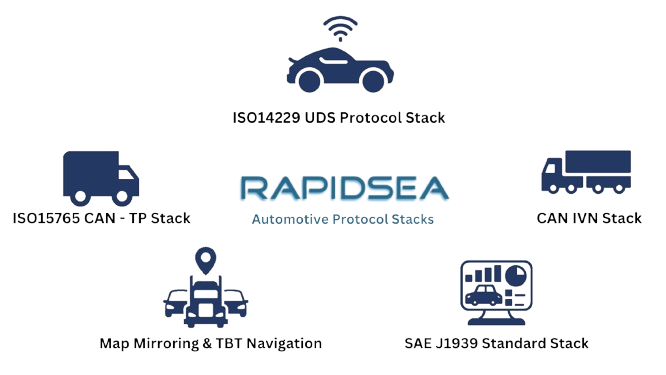

RAPIDSEA Automotive Protocol Stacks

Each RAPIDSEA protocol stack follows a consistent architecture, coding style, documentation model, and integration workflow, enabling faster adoption across teams.

ISO 14229 UDS Stack

Our UDS stack facilitates seamless ECU diagnostics and firmware updates. It supports both client and server modes, ensuring full compliance with ISO 14229 standards. Highly portable and MISRA-C compliant, it integrates effortlessly with bootloaders, providing a robust foundation for remote vehicle diagnostics and efficient legislative compliance across various global automotive markets.

Know more

ISO 15765 ISO-TP (DoCAN)

The DoCAN stack handles multi-frame segmentation and flow control for CAN networks. Operating as the transport layer for UDS, it ensures reliable data transfer over standard and CAN-FD interfaces. Optimized for low memory footprints, it manages complex timing parameters (P1 to P4) with precision, making it ideal for resource-constrained 8-bit to 64-bit automotive microcontrollers.

Know more

ISO 13400 DoIP Stack

Unlock high-speed diagnostics with our Diagnostics over IP (DoIP) stack. It bridges the gap between Ethernet and traditional vehicle buses, enabling ultra-fast flashing and remote diagnostics via 100/1000Base-T1. It supports edge-to-cloud communication, making it an essential component for modern SDVs requiring rapid data throughput and secure, remote vehicle access and maintenance.

Know more

Automotive CAN IVN Stack

This In-Vehicle Network stack provides a comprehensive abstraction layer for CAN and CAN-FD communication. It manages message filtering, arbitration, and signal packing/unpacking with high deterministic performance. Designed for durability, it handles bus-heavy environments in powertrain and chassis control, ensuring that critical signals reach their destination without latency or data corruption in harsh environments.

Know more

Automotive Navigation Stack

Transform the driver experience with our Map Mirroring and Turn-by-Turn (TBT) Navigation stack. It allows seamless projection of navigation data from mobile devices to instrument clusters. Optimized for low-latency rendering, it ensures that critical directional cues and icons are displayed accurately, enhancing safety while reducing the need for expensive, standalone on-board navigation hardware components.

Know more

SOME/IP Protocol Stack

The backbone of Service-Oriented Architecture, our SOME/IP stack enables flexible communication over Automotive Ethernet. It handles service discovery, remote procedure calls, and event-based notification. By decoupling hardware from software, it allows OEMs to scale features dynamically across different vehicle variants, facilitating a modular approach to modern e-cockpit and ADAS application development & integration.

Know more

SAE J1939 Protocol Stack

Specifically engineered for heavy-duty vehicles and commercial fleets, our J1939 stack manages communication for engines, transmissions, and braking systems. It handles Parameter Group Number (PGN) mapping and Address Claiming with ease. Its robust design is proven in electric tractors and industrial machinery, ensuring interoperability across diverse multi-vendor components in the commercial vehicle ecosystem.

Know more

OBD2 Protocol Stack

Ensure global emission compliance with our dedicated On-Board Diagnostics (OBD2) stack. It supports all mandatory PIDs and diagnostic modes required by regulatory bodies. Designed for easy integration into Telematics Control Units (TCUs), it provides real-time access to engine data, fault codes, and readiness monitors, simplifying the development of emission-monitoring and fleet-management solutions.

Know more

XCP Protocol Stack

The Universal Measurement and Calibration Protocol (XCP) stack enables real-time ECU tuning and data acquisition. It supports client-server communication over CAN and Ethernet. By providing direct access to internal variables without interrupting real-time execution, it empowers calibration engineers to optimize engine performance and battery management systems with surgical precision during the development phase.

Know more

Use Cases Across Automotive Systems

RAPIDSEA Automotive Protocol Stacks are deployed across multiple vehicle domains and product categories:

Contact sales to learn more
Instrument Clusters icon

Instrument Clusters

Used in two-wheelers, three-wheelers, and EVs for CAN communication, diagnostics, navigation data, & warning management.

E-Cockpits & Infotainment Systems icon

E-Cockpits & Infotainment Systems

Enable connected infotainment, service-oriented data exchange, diagnostics, and navigation mirroring.

Telematics Control Units (TCUs) icon

Telematics Control Units (TCUs)

Support vehicle data acquisition, remote diagnostics, OTA update workflows, and cloud connectivity.

Automotive ECUs & Gateways icon

Automotive ECUs & Gateways

Provide core communication layers for body electronics, powertrain, ADAS, and central gateway ECUs.

Unique Advantages for Automotive Development

RAPIDSEA stacks are engineered specifically for embedded automotive constraints and long product lifecycles:

These advantages help engineering teams reduce integration risk, accelerate validation, and future-proof vehicle platforms.

Validation, Tooling & No-Code Configuration

RAPIDSEA Automotive Protocol Stacks are validated using industry-standard tools such as Vector CAN analyzers, VN1610, VN1630A, Peak PCAN USB adapters, and Waveshare interfaces. This ensures compatibility across diverse OEM and Tier-1 test environments.

The Flint Configurator enables a no-code / low-code approach to ECU stack development. Developers can configure protocol parameters, generate code, and deploy stacks using an intuitive graphical interface; reducing manual errors and development effort.

FAQs

Automotive protocol stacks are software layers that enable standardized communication between vehicle ECUs, tools, and external systems. They handle diagnostics, data transport, networking, and calibration using protocols like CAN, UDS, DoIP, and Ethernet.

Need Production-Ready Automotive Protocols?

RAPIDSEA provides standards-compliant stacks built for real vehicles.
