RAPIDSEA ISO-TP Stack Overview
In the complex world of automotive embedded systems, data requirements are evolving rapidly. While the Controller Area Network (CAN) remains the backbone of vehicle communication, its standard 8-byte payload limit is insufficient for modern diagnostic operations.
The RAPIDSEA ISO15765 ISO-TP DoCAN (Diagnostic over Controller Area Network) Stack serves as the critical bridge. This stack enables engineers to transmit and receive ISO-TP messages reliably over CAN and CAN-FD interfaces, independent of the underlying MCU, compiler, or RTOS.

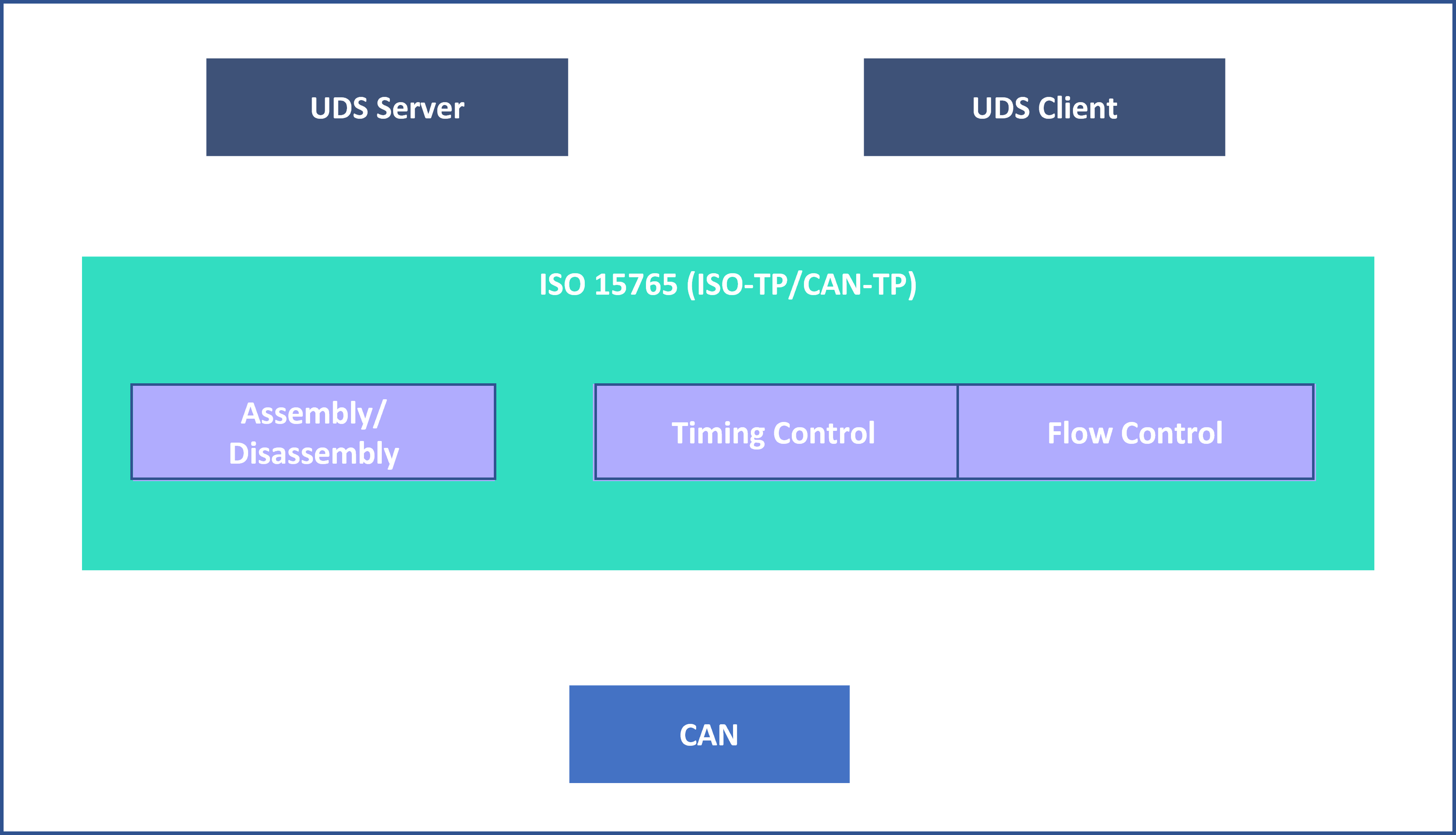

It implements the ISO 15765-2 standard, managing the packetization (segmentation) of large data blocks into smaller CAN frames at the transmitter side and the de-packetization (reassembly) at the receiver side. This layer allows upper-layer protocols, specifically UDS (Unified Diagnostic Services - ISO 14229), to transmit large data chunks up to 4095 bytes transparently, as if the CAN limitation didn't exist. Whether you are performing ECU firmware updates (FOTA), reading complex trouble codes, or transferring vehicle parameters, our stack ensures data integrity and timing compliance.
