SOME/IP Server Demo

There is an example implementation of SOME/IP server demo available in apps folder. SOME/IP server is in waiting condition for UDP socket connection .Once connected SOME/IP server is ready to send the response to the client.

The below diagram captures the high level flow of client and server of SOME/IP.

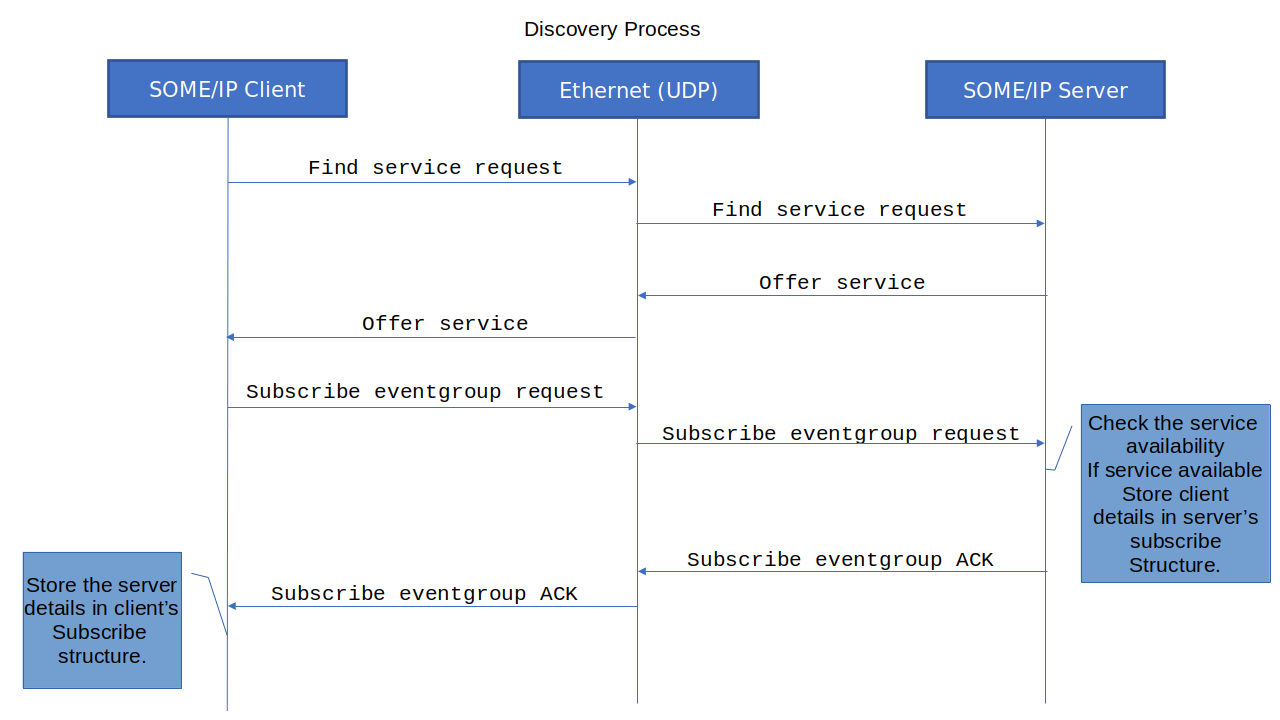

Service Discovery Process

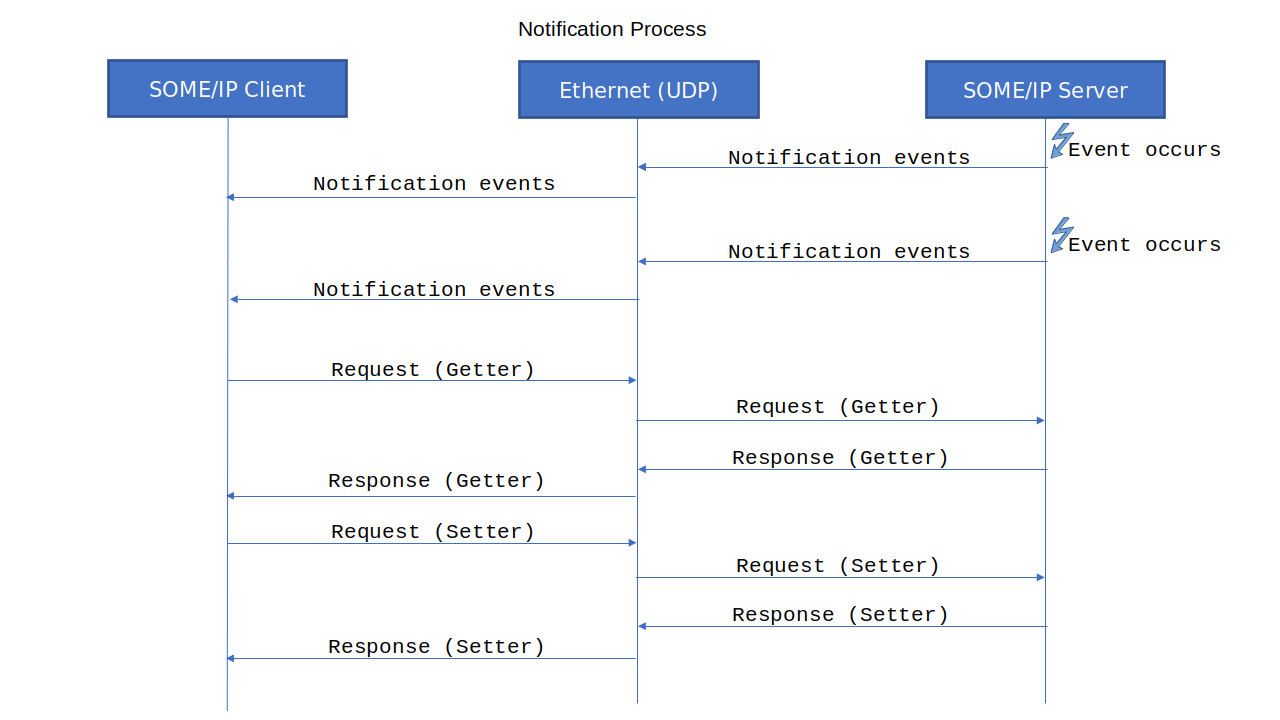

Notification Process

In this implementation, a model ECU is created to mimic various features that hold vehicle information like speed, RPM, door state, and gear state. Based on the SOME/IP protocol, if any event group is subscribed to by a client, the notification events will be sent while fields are updated in the corresponding event group, and data will be read and written on particular events(under subscribed eventgroup) with the below-mentioned event IDs.

Supported Event IDs

Service ID	Instance ID	Eventgroup ID	Event ID	Size	Read/Write	Description
0x1234	0x5678	0x4425	0x8001	1 Byte	Read Write	Wheel slip status
0x1234	0x5678	0x4425	0x8002	2 Byte	Read Write	Speed data
0x1234	0x5678	0x4425	0X8003	4 Byte	Read Write	RPM data
0x1234	0x5678	0x4426	0x8004	1 Byte	Read Write	Engine state
0x1234	0x5678	0x4426	0x8005	2 Byte	Read Write	Steering data
0x1234	0x5678	0x4426	0x8006	4 Byte	Read Write	YAW rate
0x1234	0x5699	0x4425	0x8007	One Dimensional Array	Read Write	Peak voltage current
0x1234	0x5699	0x4425	0x8008	One Dimensional Array	Read Write	State of charge and state of health
0x1234	0x5699	0x4426	0x8009	Multi Dimensional Array	Read Write	Battery heat grid
0x1235	0x5679	0x4425	0x800A	One Dimensional Array	Read Write	OTA status message
0x1235	0x5679	0x4425	0x800B	One Dimensional Array	Read Write	OTA error message
0x1234	0x5678	0x4425	0x800C	structure	Read Write	Vehicle position event
0x1235	0x5678	0x4425	0x800D	structure(union)	Read Write	diag_payload_data_1
0x1235	0x5678	0x4425	0x800E	structure(union)	Read Write	diag_payload_data_2
0x1001	0x2001	0x4422	0x800F	1 Byte	Read Write	Front right door state event
0x1001	0x2002	0x4423	0x8010	1 Byte	Read Write	Front left door state event
0x1001	0x2003	0x4424	0x8011	1 Byte	Read Write	Rear right door state event
0x1001	0x2004	0x4425	0x8012	1 Byte	Read Write	Rear left door state event
0x1002	0x2005	0x4427	0x8013	Structure	Read Write	Front right tyre state
0x1002	0x2005	0x4427	0x8014	Structure	Read Write	Front left tyre state
0x1002	0x2005	0x4428	0x8015	Structure	Read Write	Rear right tyre state
0x1002	0x2005	0x4428	0x8016	Structure	Read Write	Rear left tyre state
0x1003	0x2006	0x4425	0x8017	2 Bytes	Read Write	ambient light state
0x1004	0x2007	0x4425	0x8018	Structure	Read Write	Brake pedal state
0x1005	0x2008	0x4430	0x8019	1 Byte	Read Write	Fuel level monitor state
0x1006	0x2009	0x4425	0x8020	One Dimensional Array	Read Write	Rain sensor state
0x1007	0x2010	0x4431	0x8021	Structure	Read Write	AC monitor event

Server Service Details Information

Supported Service Details

Service ID	Instance ID	TTL	Major Ver	Minor Ver	Port	IP Ver	Proto Type
0x1234	0x5678	15	1	0	30510	IPV4/IPV6	UDP
0x1234	0x5699	20	2	5	30511	IPV4/IPV6	UDP
0x1235	0x5679	30	1	5	30510	IPV4/IPV6	UDP
0x1234	0x5678	45	4	4	30510	IPV4/IPV6	TCP
0x1235	0x5678	15	1	2	30512	IPV4/IPV6	TCP
0x1001	0x2001	25	1	0	30500	IPV4/IPV6	UDP
0x1001	0x2002	10	1	1	30501	IPV4/IPV6	UDP
0x1001	0x2003	15	1	2	30502	IPV4/IPV6	UDP
0x1001	0x2004	20	1	3	30503	IPV4/IPV6	UDP
0x1002	0x2005	15	1	0	30504	IPV4/IPV6	TCP
0x1003	0x2006	20	1	0	30510	IPV4/IPV6	UDP
0x1004	0x2007	25	1	0	30510	IPV4/IPV6	UDP
0x1005	0x2008	30	1	0	30507	IPV4/IPV6	TCP
0x1006	0x2009	20	1	0	30510	IPV4/IPV6	UDP
0x1007	0x2010	25	1	0	30510	IPV4/IPV6	TCP

Server Eventgroup Details Information

Supported Eventgroup Details

Service ID	Instance ID	Eventgroup	Multicast Port	Multicast IPV4 Addr	Multicast IPV6 Addr
0x1234	0x5678	0x4425	35689	“224.0.10.5”	“FF05:0000:0000:0000:0000:0000:1235:1236”
0x1234	0x5678	0x4426	0	0	0
0x1234	0x5699	0x4425	35670	“224.25.36.15”	“FF05:0000:0000:0000:1237:0000:7777:5000”
0x1234	0x5699	0x4426	35690-IPV6 and 35689-IPV4	“224.0.10.5”	“FF05:0000:0000:0000:1237:0000:8000:2000”
0x1235	0x5679	0x4425	0	0	0
0x1234	0x5678	0x4425	0	0	0
0x1235	0x5678	0x4425	0	0	0
0x1001	0x2001	0x4422	0	0	0
0x1001	0x2002	0x4423	0	0	0
0x1001	0x2003	0x4424	0	0	0
0x1001	0x2004	0x4425	0	0	0
0x1002	0x2005	0x4427	0	0	0
0x1002	0x2005	0x4428	0	0	0
0x1003	0x2006	0x4425	35690 - IPV6 and 35670 - IPV4	“224.25.36.15”	“FF05:0000:0000:0000:1237:0000:8000:2000”
0x1004	0x2007	0x4425	35690 - IPV6 and 35670 - IPV4	“224.25.36.15”	“FF05:0000:0000:0000:1237:0000:8000:2000”
0x1005	0x2008	0x4430	0	0	0
0x1006	0x2009	0x4425	0	0	0
0x1007	0x2010	0x4431	0	0	0

Server Event Information

Supported Event Information

Service ID	Instance ID	Major Version	Eventgroup ID	Event ID
0x1234	0x5678	1	0x4425	0x8001
0x1234	0x5678	1	0x4425	0x8002
0x1234	0x5678	1	0x4425	0x8003
0x1234	0x5678	1	0x4426	0x8004
0x1234	0x5678	1	0x4426	0x8005
0x1234	0x5678	1	0x4426	0x8006
0x1234	0x5699	2	0x4425	0x8007
0x1234	0x5699	2	0x4425	0x8008
0x1234	0x5699	2	0x4426	0x8009
0x1235	0x5679	1	0x4425	0x800A
0x1235	0x5679	1	0x4425	0x800B
0x1234	0x5678	4	0x4425	0x800C
0x1235	0x5678	1	0x4425	0x800D
0x1235	0x5678	1	0x4425	0x800E
0x1001	0x2001	1	0x4422	0x800F
0x1001	0x2002	1	0x4423	0x8010
0x1001	0x2003	1	0x4424	0x8011
0x1001	0x2004	1	0x4425	0x8012
0x1002	0x2005	1	0x4427	0x8013
0x1002	0x2005	1	0x4427	0x8014
0x1002	0x2005	1	0x4428	0x8015
0x1002	0x2005	1	0x4428	0x8016
0x1003	0x2006	1	0x4425	0x8017
0x1004	0x2007	1	0x4425	0x8018
0x1005	0x2008	1	0x4430	0x8019
0x1006	0x2009	1	0x4425	0x8020
0x1007	0x2010	1	0x4431	0x8021

Server Event Data Information

Supported Event Data Information

Event ID	User Data Type	Description
0x8001	uint8	Wheel Slip Status
0x8002	uint16	Speed Data
0x8003	uint32	RPM Data
0x8004	int8	Engine State
0x8005	int16	Steering Data
0x8006	int32	Yaw rate
0x8007	One Dimensional Array	Peak Vol Current
0x8008	One Dimensional Array	State of charge and state of health
0x8009	Multi Dimensional Array	Battery Heat Grid
0x800A	One Dimensional Array	ota status message
0x800B	One Dimensional Array	ota error message
0x800C	Structure (float …, float .., uint32_t .., uint32_t …)	Vehicle Pos Event data (latitude, longitude, speed, heading_direction)
0x800D	union (uint8_t, uint16_t, uint32_t)	Diag Payload Data 1 (status_flags, error_type, fault_code)
0x800E	union (uint8_t, uint16_t, uint32_t)	Diag Payload Data 2 (status_flags, error_type, fault_code)
0x800F	uint8	Front right door state event
0x8010	uint8	Front left door state event
0x8011	uint8	Rear right door state event
0x8012	uint8	Rear left door state event
0x8013	Structure (float)	Front right tyre state (tyre_temp_c, tyre_pressure_kPa)
0x8014	Structure (float)	Front left tyre state (tyre_temp_c, tyre_pressure_kPa)
0x8015	Structure (float)	Rear right tyre state (tyre_temp_c, tyre_pressure_kPa)
0x8016	Structure (float)	Rear left tyre state (tyre_temp_c, tyre_pressure_kPa)
0x8017	uint16	ambient light state
0x8018	Structure (uint8_t.., uint16_t)	Brake pedal state (pedal_position, pressure_kPa)
0x8019	uint8	Fuel level monitor state
0x8020	One Dimensional Array	Rain sensor state
0x8021	Structure (uint8_t.., int8_t..,)	AC monitor event (ac_power_state, ac_temperature_set, ac_fan_speed_level, ac_mode)

Read data by Method ID services:

Read (Getter) data by method id

Event ID	Method ID
0x8001	101
0x8002	102
0x8003	103
0x8004	104
0x8005	105
0x8006	106
0x8007	107
0x8008	108
0x8009	109
0x800A	10A
0x800B	10B
0x800C	10C
0x800D	10D
0x800E	10E
0x800F	10F
0x8010	110
0x8011	111
0x8012	112
0x8013	113
0x8014	114
0x8015	115
0x8016	116
0x8017	117
0x8018	118
0x8019	119
0x8020	120
0x8021	121

Write data by Method ID services:

Write(Setter) data by method id

Event ID	Method ID
0x8001	01
0x8002	02
0x8003	03
0x8004	04
0x8005	05
0x8006	06
0x8007	07
0x8008	08
0x8009	09
0x800A	0A
0x800B	0B
0x800C	0C
0x800D	0D
0x800E	0E
0x800F	0F
0x8010	10
0x8011	11
0x8012	12
0x8013	13
0x8014	14
0x8015	15
0x8016	16
0x8017	17
0x8018	18
0x8019	19
0x8020	20
0x8021	21

SOME/IP Server Memory Details

The SOME/IP Server Demo Application manages multiple services and client subscriptions using predefined static memory allocations. Each server instance maintains dedicated memory structures for notification handling (via UDP or TCP), service management, and subscriber tracking. These allocations ensure deterministic runtime behavior and predictable performance across varying numbers of connected clients.

The server uses dedicated 5 KB buffers for TX and RX per message context, consistent with the SOME/IP and SOME/IP-TP communication models. This allows efficient transmission of both standard and large payloads without dynamic memory fragmentation.

SOME/IP Server Demo – Memory Configuration

Configuration / Structure	Macro / Size	Description & Impact
RS_SOMEIP_SERVER_MAX_NOTIFY_UDP_SOCKET	10 (default)	Defines the maximum number of UDP sockets used by the server to send notification messages (e.g., event updates). Each socket instance is stored in notify_udp_info[] within rs_someip_server_notify_info_t.
RS_SOMEIP_SERVER_MAX_NOTIFY_TCP_SOCKET	10 (default)	Specifies the maximum number of TCP sockets used for event notification and data transmission. Each TCP socket maintains its own protocol context and connection state within server_tcp_info[].
RS_SOMEIP_SERVER_MAX_NUM_OF_TCP_CLIENT_CONN	5 (default)	Defines the maximum number of simultaneous TCP client connections that can be managed by the server. Each active TCP connection consumes a dedicated instance structure and associated socket buffer resources.
number_of_services	Application-defined (e.g., 250)	Represents the total number of SOME/IP services available on the server. Each service consumes memory for service configuration, instance management, and handler registration.
number_of_subscribe	User Defined Size	Tracks the current number of active subscribers connected to the server. Used to allocate and manage notification channels (UDP/TCP) for each subscribed client.
TX/RX Message Buffers	~5 KB each	Dedicated transmit and receive buffers used by the SOME/IP layer. These buffers are aligned with SOME/IP-TP for handling large data transfers that require segmentation and reassembly.
rs_someip_server_notify_info_t	Structure instance	Holds arrays of UDP and TCP notification socket information used to manage outgoing communication to subscribed clients.

1. All macro values (e.g., RS_SOMEIP_SERVER_MAX_TCP_CONN, RS_SOMEIP_SERVER_MAX_UDP_SOCKET) are compile-time constants, meaning memory is statically allocated during build time.

2. Increasing these values allows the server to handle more concurrent client connections or offered services, but proportionally increases RAM and stack usage.

3. Reducing the values may result in connection refusals, missed event notifications, or limited scalability under high client load.

4. The TX/RX buffer size (5 KB) must remain consistent with the SOME/IP-TP configuration, ensuring proper segmentation and reassembly of large responses or event payloads.

5. When scaling the server for multiple services or high concurrency, verify that the target platform has adequate heap and static memory to handle the increased number of connections and message buffers.

SOME/IP Server Running Example

Refer to the Supported Platforms page to setup your environmental setup and follow further.

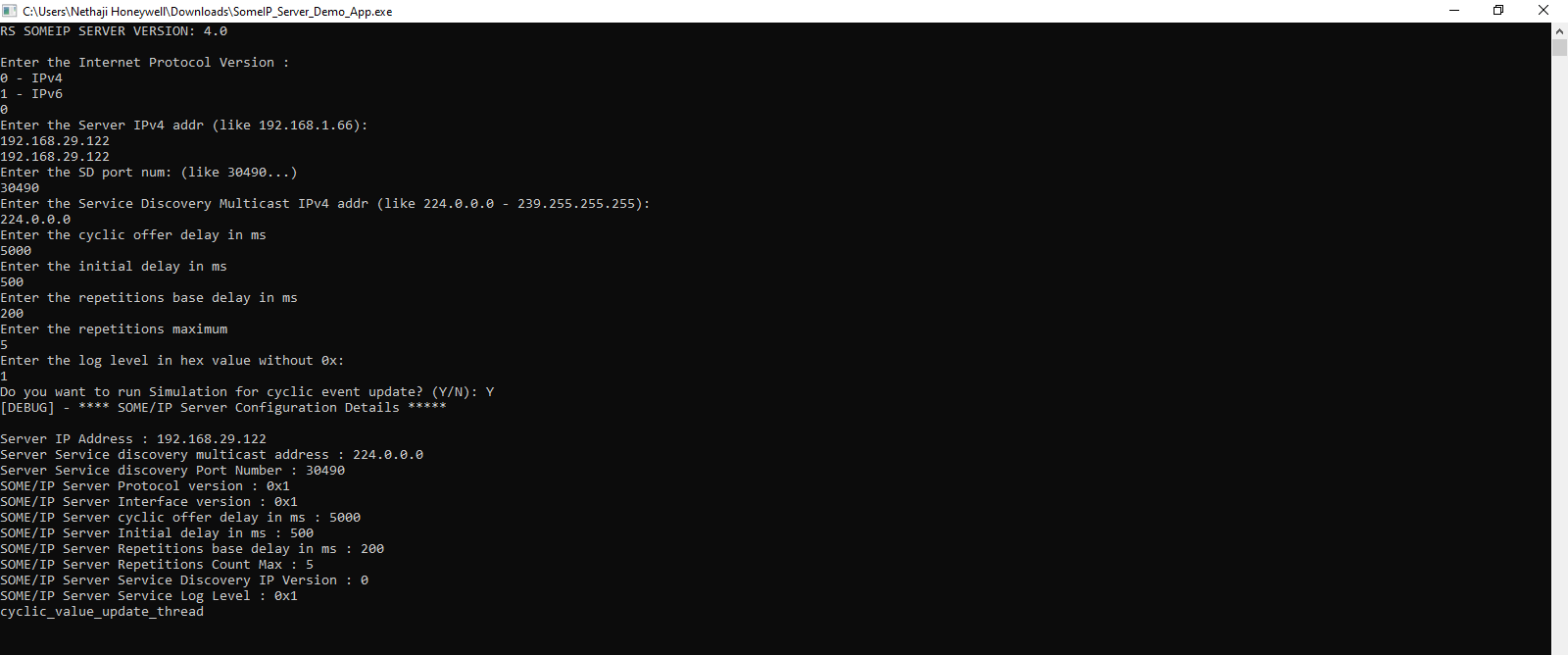

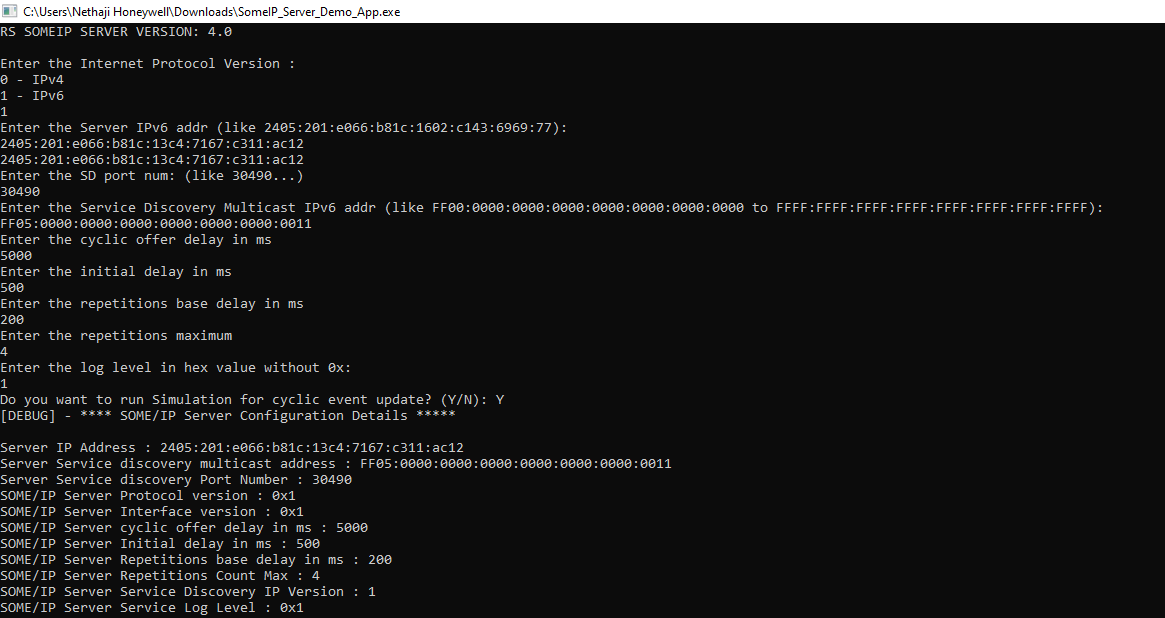

User Configuration for Server (IPV4)

Server Configuration IPV4

Socket configuration	Value
SOME/IP Protocol Version	0 - IPV4
SOME/IP server IP address	IP address of server running PC or machine
SOME/IP SD Port	30490
SOME/IP find service send mode for server.	0 - Unicast Mode
SOME/IP Service Discovery Unicast IPV4 Addr(192.168.29.39 or 10.0.0.5)	192.168.29.93
SOME/IP server cyclic offer delay (ms)	5000
SOME/IP server initial delay (ms)	500
SOME/IP server repetition base delay (ms)	200
SOME/IP server repetitions maximum	5
SOME/IP server log level in hex without(0x)	1
SOME/IP server simulation run for cyclic event update	for Send notification event by automatially with cyclic manner, (N) for Send notification event by manually
SOME/IP server simulation run for 250 services	for to Start the server service simulation process for 250 services (N) for to start the server simulation process for 15 services
SOME/IP server set state for all services	for to set service state for all the services , (N) for not set the service state for all the services previously.
SOME/IP-TP RX Timeout (ms)	2000
SOME/IP-TP TX separation time (ms)	10
SOME/IP-TP burst size	1

• After project successfully built, someip_server_demo binary generated.

• Open the terminal in the above folder and run the below command

(IPV4)

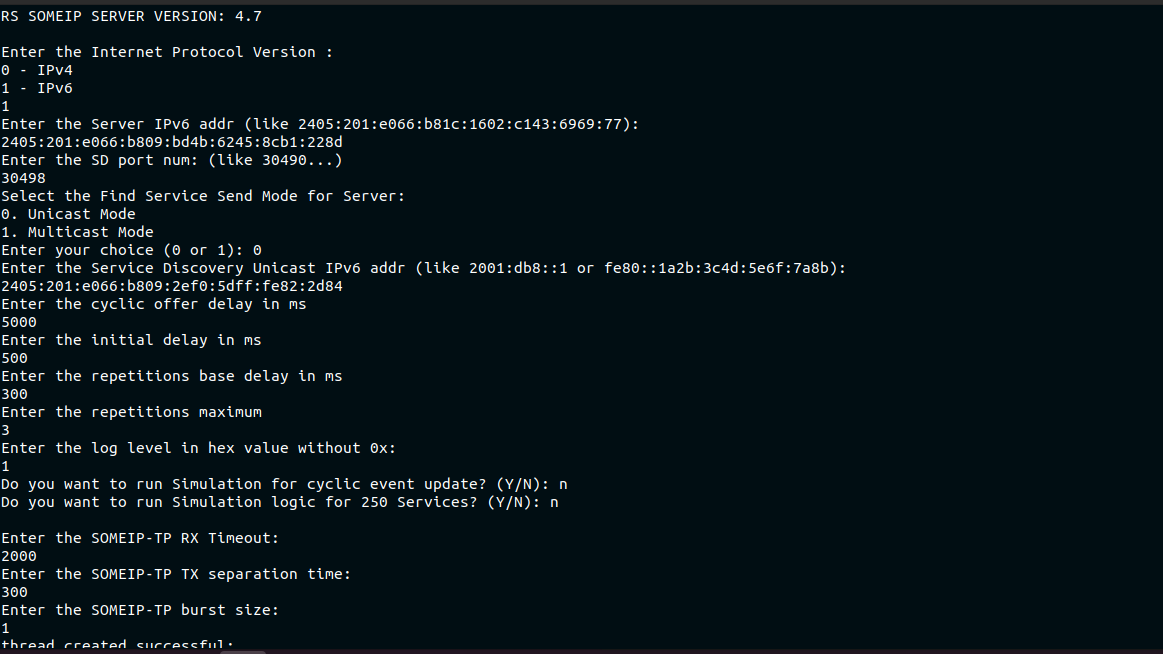

User Configuration for Server (IPV6)

Server Configuration IPV6

Socket configuration	Value
SOME/IP Protocol Version	1 - IPV6
SOME/IP server IP address	IP address of server running PC or machine
SOME/IP SD Port	30490
SOME/IP server Port number	30509
SOME/IP Service Discovery Unicast IPV6 Addr(2001:db8::1 or fe80::1a2b:3c4d:5e6f:7a8b)	2405:201:e066:b809:bd4b:6245:8cb1:228d
SOME/IP server cyclic offer delay (ms)	5000
SOME/IP server initial delay (ms)	500
SOME/IP server repetition base delay (ms)	200
SOME/IP server repetitions maximum	5
SOME/IP server log level in hex without(0x)	1
SOME/IP serer run for cyclic event update	for Send notification event by automatially with cyclic manner, (N) for Send notification event by manually
SOME/IP-TP RX Timeout (ms)	2000
SOME/IP-TP TX separation time (ms)	10
SOME/IP-TP burst size	1

Note: The log level uses individual bits to enable or disable specific log categories. Each log type corresponds to a bit position (RS_LOG_ERR → bit 0, RS_LOG_INFO → bit 1, RS_LOG_DEBUG → bit 2, RS_LOG_RX → bit 3, RS_LOG_TX → bit 4).

For example, log level = 1D (binary 11101) means that the 0th, 2nd, 3rd, and 4th bits are set, so ERR, DEBUG, RX, and TX logs are enabled, while the INFO log (bit 1) is disabled.

• After project successfully built, someip_server_demo binary generated.

• Open the terminal in the above folder and run the below command

(IPV6)

Set Service State

• To make a specific service Available on the SOME/IP Server, choose the option Set Service State.

• Type 1 and press Enter.

• Enter the Service ID, Instance ID, Major Version, and Minor Version in hexadecimal format.

• The selected service is set to AVAILABLE and advertised through Service Discovery (SD).

Clear Service State

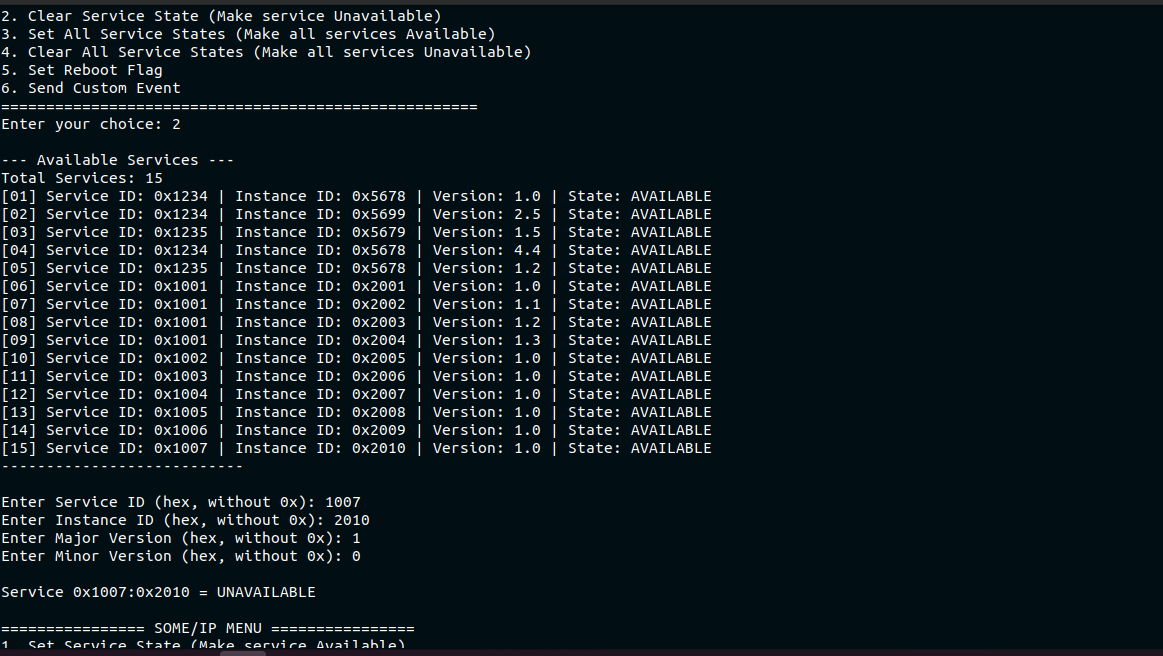

• To deactivate a specific service, choose Clear Service State.

• Type 2 and press Enter.

• Enter the Service ID, Instance ID, Major Version, and Minor Version in hexadecimal format.

• The selected service is set to UNAVAILABLE, and a Stop Offer message is sent through SD.

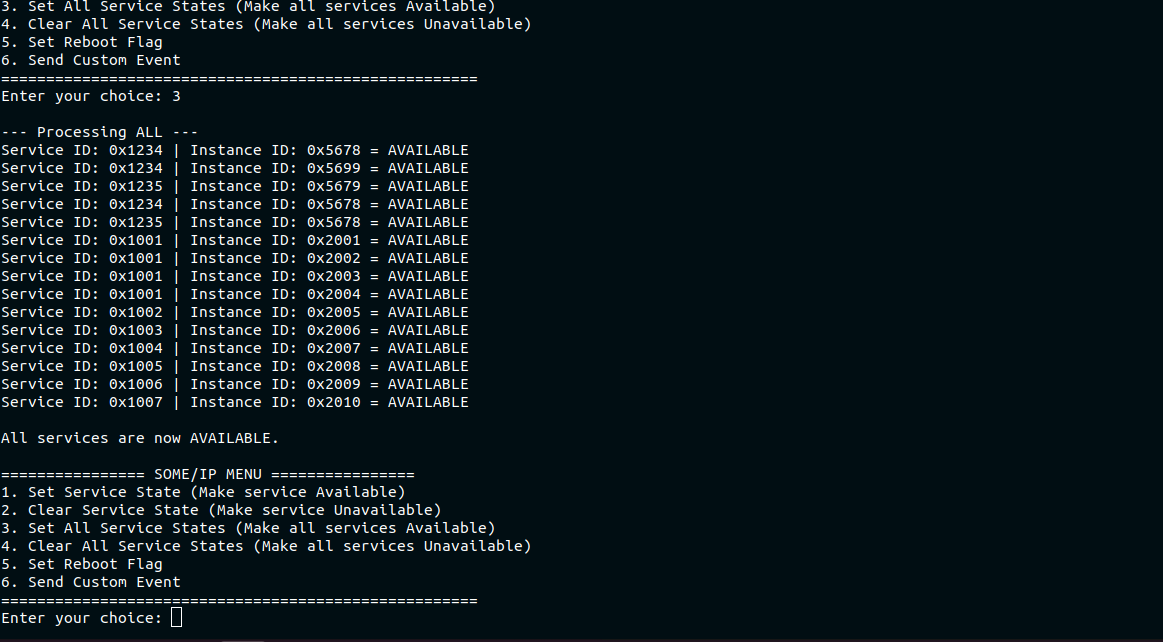

Set All Service States

• To make all configured services Available at once, choose Set All Service States.

• Type 3 and press Enter.

• The client sets all services in the service table to AVAILABLE and announces them via SD cyclic offers.

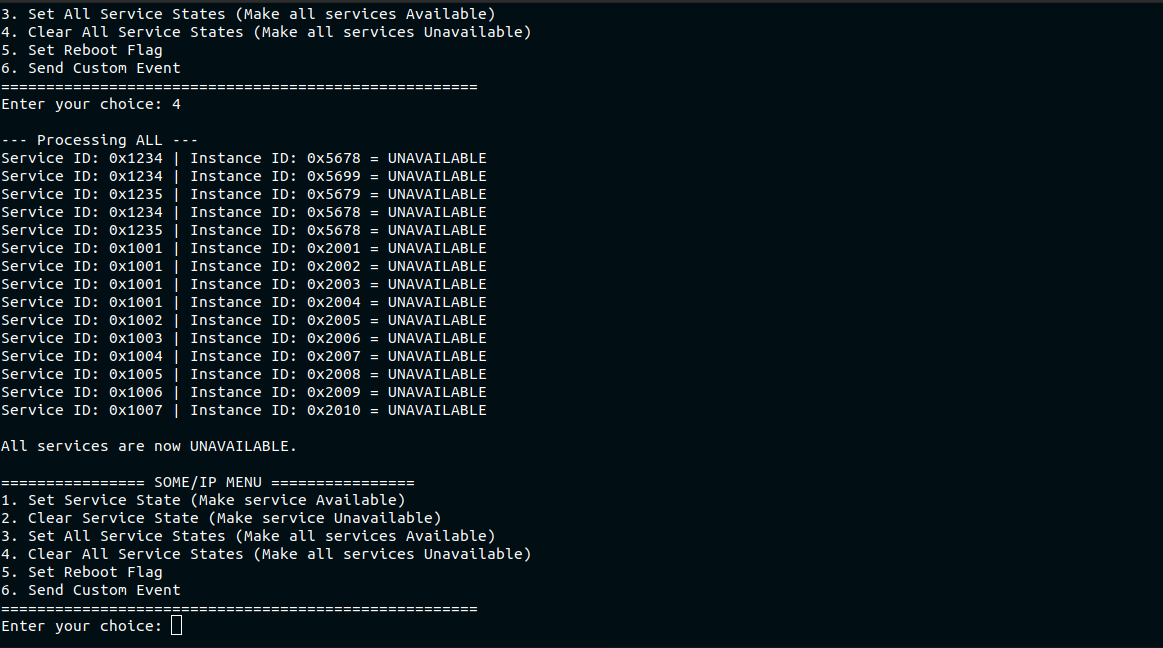

Clear All Service States

• To make all configured services Unavailable, choose Clear All Service States.

• Type 4 and press Enter.

• All services are cleared and marked as UNAVAILABLE in the service table.

Set Reboot Flag

• To simulate a Service or ECU reboot, choose Set Reboot Flag.

• Type 5 and press Enter.

• The client sets a reboot flag, forcing the server to resend service offers and restart advertisements.

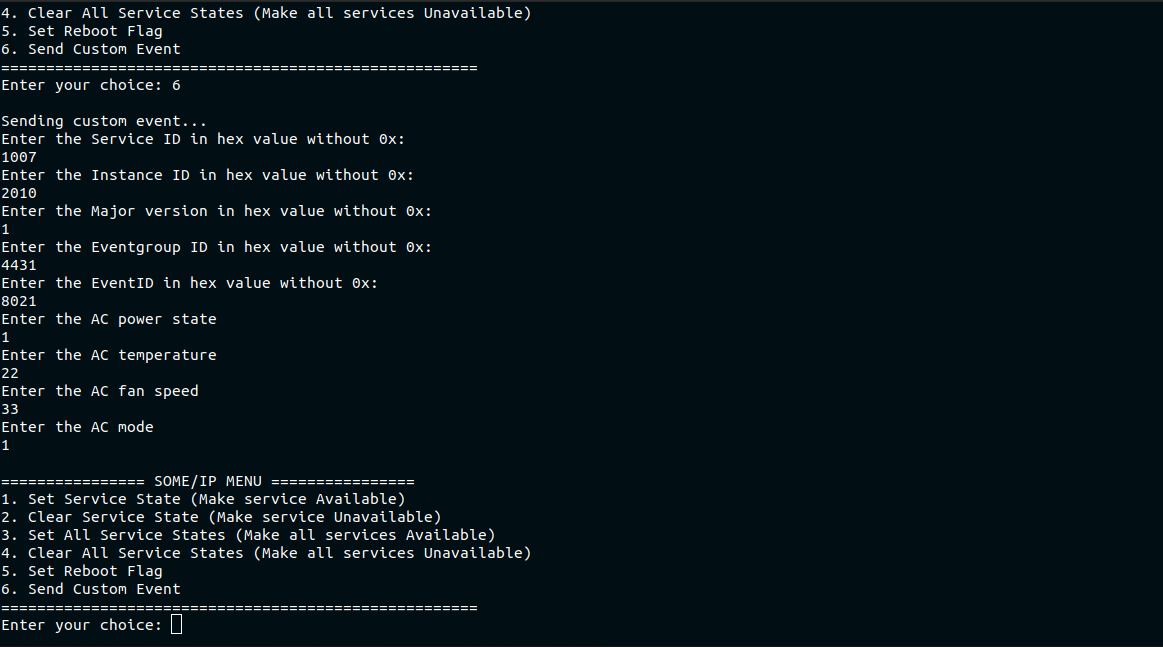

Send Custom Event

• To send a manual SOME/IP Event Notification, choose Send Custom Event.

• Type 6 and press Enter.

• Enter the Service ID, Event Group ID, Payload Length, and Payload Data (in hex).

• The system frames and transmits the event to all subscribed clients.

• The SOME/IP server initiates the process and waits for the client to connect. After the SOME/IP client starts the process, both the server and client connects and proceed with services.

• Refer to the SOME/IP protocol page for more details SOME/IP Protocol.
