Menu Editor

Menu Editor Overview

• This is the menu editor module is the aplication module which will edit the menu contents provided by the user.

• In application text menu, the menu list and variables are declared.

• The main buffer structure variable and the internal data buffer both should be declared on the application side and the pointers of the variables are used in the module.

Usage

1. The API functions have the first argument as the strucure instance and next followed by config structure.

2. Menu config and variables are initialized with module open function.

3. The module has an edit mode to modify the menu contents and a view mode to display the menu data.

4. Return codes of API functions are defined in header file.

Application Interface

Menu editor calls

Function	Description
rs_menu_editor_open	Function to open the menu editor module
rs_menu_editor_refresh_lcd_contents	Function to refresh the menu editor contents in lcd module
rs_menu_editor_process	Function to process the menu editor contents.
rs_menu_editor_update_contents	Function to update the menu editor contents.

The below table contains callback functions that are to be performed from the HAL.

Callback Functions

Function	Description
rcb_keypad_action	It executes an action when a key event (press or release) occurs. It processes the key event and triggers the appropriate response.

Example Usecase

The example of menu listed below:

const rs_lcd_menu_list_t arr_menu_Items[] =
{
//label             parent  child  next   data id                     format                           prop

{"menu",              0,      1,    0,      0,                          0,                              0},//0
{"Configuration",     0,      4,    2,      0,                          0,                              0}, //1
{"Status",            0,      10,   3,      0,                          0,                              0}, //2
{"About",             0,      12,   0,      0,                          0,                              0}, //3
{"Control mode",      1,      0,    5,      FLINT_DATA_BRIDGE_ID_DEFAULT_DATA_DB_ENUM_CONTROL_MODE,    RS_DATA_PROP_STORAGE_ENUM,    MENU_PROP_EDITTABLE | MENU_PROP_HAS_VALUE}, //4
{"CAN Baud rate",     1,      0,    6,      FLINT_DATA_BRIDGE_ID_DEFAULT_DATA_DB_ENUM_BAUDRATE,        RS_DATA_PROP_STORAGE_ENUM,    MENU_PROP_EDITTABLE | MENU_PROP_HAS_VALUE}, //5
{"Open circuit",      1,      0,    9,      FLINT_DATA_BRIDGE_ID_DEFAULT_DATA_DB_ENUM_OPEN_CIRCUIT,    RS_DATA_PROP_STORAGE_ENUM,    MENU_PROP_EDITTABLE | MENU_PROP_HAS_VALUE}, //8
{"Drive mode",        1,      0,    0,      FLINT_DATA_BRIDGE_ID_DEFAULT_DATA_DB_ENUM_DRIVE_MODE,      RS_DATA_PROP_STORAGE_ENUM,    MENU_PROP_EDITTABLE | MENU_PROP_HAS_VALUE}, //9
{"CAN comm",          2,      0,    11,     FLINT_DATA_BRIDGE_ID_DEFAULT_DATA_DB_ENUM_CAN_COMM,        RS_DATA_PROP_STORAGE_ENUM,    MENU_PROP_EDITTABLE | MENU_PROP_HAS_VALUE}, //10
};

Dependency

This menu editor module depends on the below RAPIDSEA modules.

• Graphic LCD
• Keypad Driver

Error Code

• Every API’s for the menu editor returns some success or failure values. Please refer below section,

  RAPIDSEA ERROR CODES

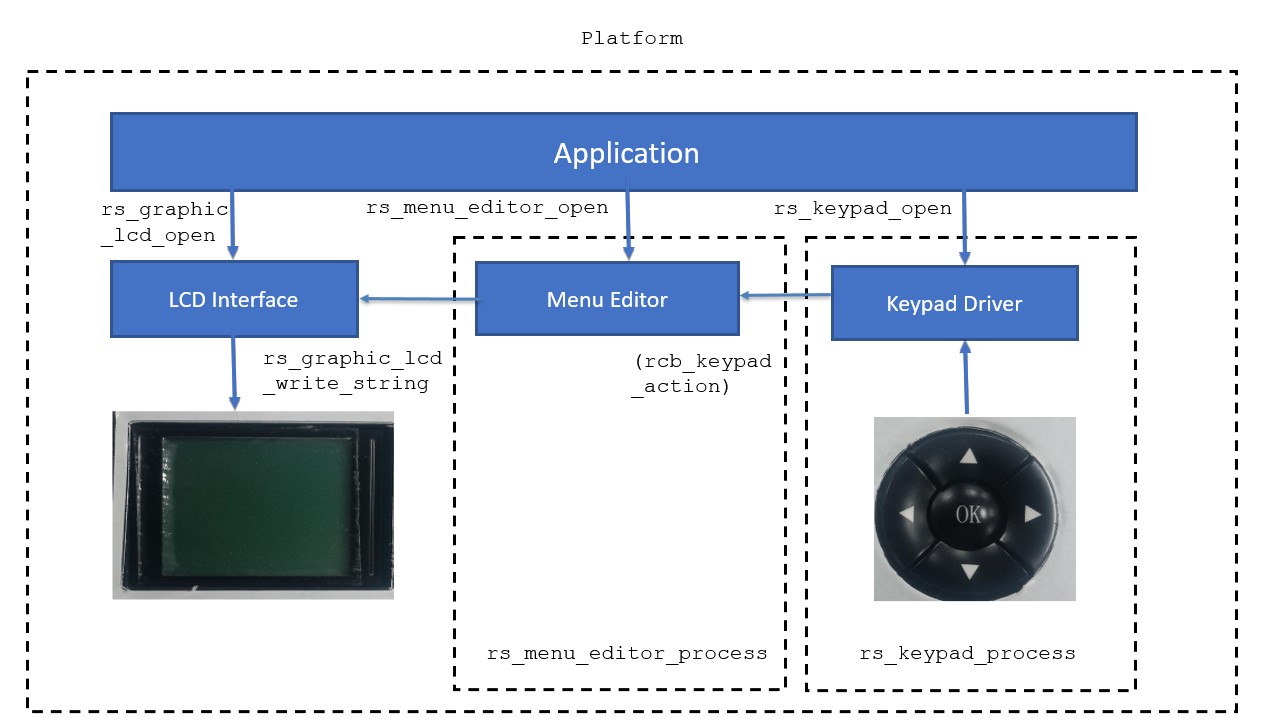

The below diagram captures the high level of Menu editor with keypad and lcd

Menu editor module Header Details

Documentation from the relevant header as follows:

Warning

doxygenfile: Cannot find file “rs_menu_editor.h
