UDS Client Stack
UDS Client Overview
RAPIDSEA supports ISO14229 protocol as explained in the ISO14229 - UDS Protocol page. This page explains the client architecture and details how the user should interface the stack with their custom logic and realize the Tester implementation quickly. It also provides guidelines on adopting the stack for different systems.

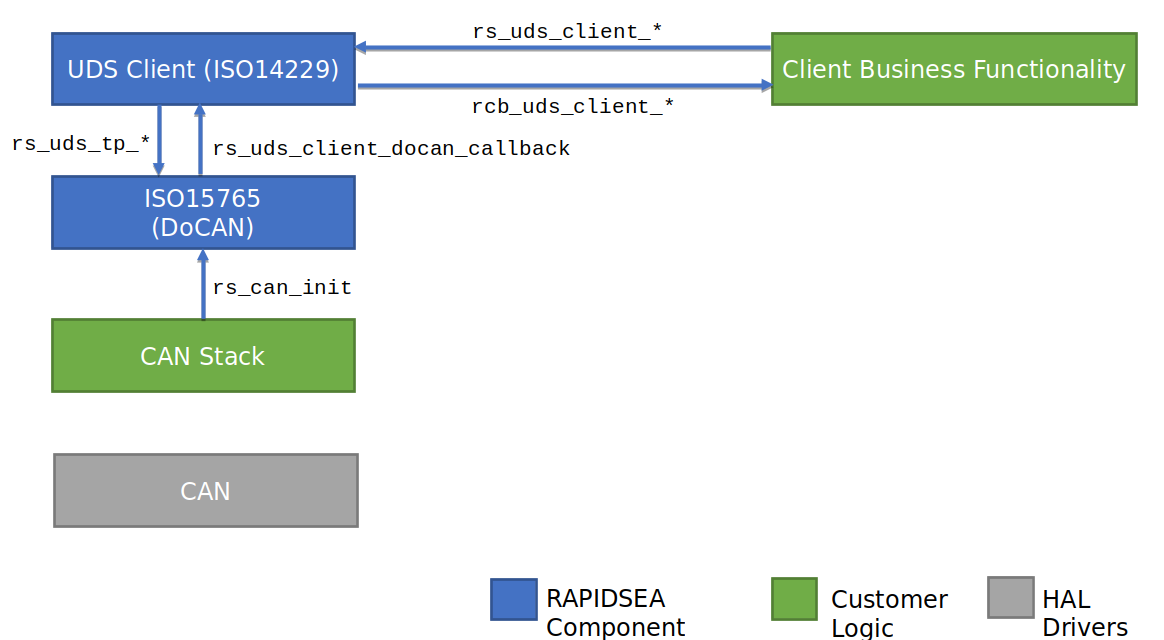

The below diagram captures the block level diagram of the DoCAN UDS client and how it interfaces with other modules.

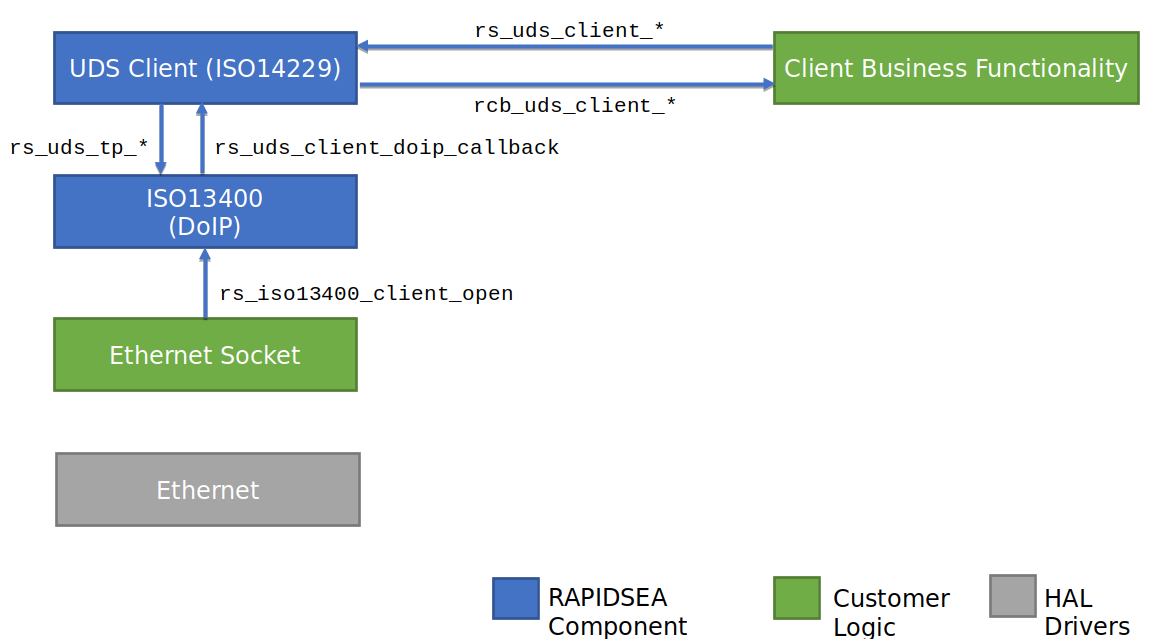

The below diagram captures the block level diagram of the DoIP UDS client and how it interfaces with other modules.
DoCAN Interface
The UDS client communicates over the CAN network through the underlying DoCAN stack (ISO15765). This DoCAN stack is also available as part of the RAPIDSEA components. All the functions that are needed are available as part of the DoCAN stack and has to be compiled together.
Mode |
Description |
|---|---|
rs_iso15765_* |
Set of functions called by UDS client to perform operation such as initialize, transmit messages etc |
rs_uds_client_docan_callback |
Callback function called by the DoCAN layer to inform of Data Indication, error etc |
These details with respect to the DoCAN interface are covered in detail in the ISO15765 - DoCAN Protocol page.
DoIP Interface
The UDS client communicates over the Ethernet through the underlying DoIP stack (ISO13400). This DoIP stack is also available as part of the RAPIDSEA components. All the functions that are needed are available as part of the DoIP stack and has to be compiled together.
Mode |
Description |
|---|---|
rs_iso13400_* |
Set of functions called by UDS client to perform operation such as initialize, transmit messages etc |
rs_uds_client_docan_callback |
Callback function called by the DoIP layer to inform of Data Indication, error etc |
These details with respect to the DoIP interface are covered in detail in the ISO13400 - DoIP Protocol page.
Application Interface
While the RAPIDSEA UDS client stack can handle most of the functionality such as message validation, session management, timing control etc, the business logic has to implement the application functionality. The RAPIDSEA UDS client clearly defines API and callback functions that are essential for the user to use/implement.
The below table captures the function that are to be called from the application logic.
Function |
Description |
|---|---|
rs_uds_client_open |
To initialize the UDS client stack. |
rs_uds_client_process |
To be called periodically to process the incoming/outgoing messages. |
rs_uds_client_req_diag_session_control |
To initiate a diagnostic session with the server. |
rs_uds_client_req_ecu_reset |
To request ECU reset. |
rs_uds_client_req_clear_diag_info |
To clear DTC information. |
rs_uds_client_req_read_data_by_id |
To read Data by ID. |
rs_uds_client_req_read_mem_by_addr |
To read memory by address. |
rs_uds_client_req_read_scaling_data_by_id |
To read scaling data of the data by ID. |
rs_uds_client_req_security_access |
To perform secure access. |
rs_uds_client_req_comm_control |
To set up communication control on the UDS channel. |
rs_uds_client_req_write_data_by_id |
To write data by ID. |
rs_uds_client_req_control_io_by_id |
To control IO by ID. |
rs_uds_client_req_routine_control |
To perform routine control operation. |
rs_uds_client_req_download |
To request download of data. |
rs_uds_client_req_transfer_data |
To transfer data. |
rs_uds_client_req_transfer_exit |
To terminate data transfer. |
rs_uds_client_req_write_mem_by_addr |
To write memory by address. |
rs_uds_client_req_tester_present |
To send tester present. |
rs_uds_client_req_access_timing_param |
To set up access timing parameters. |
rs_uds_client_req_control_dtc_setting |
To set up DTC settings. |
rs_uds_client_req_link_control |
To set up link control. |
rs_uds_client_req_read_data_by_periodic_id |
To read data using periodic IDs. |
rs_uds_client_req_read_dtc_info |
To read DTC information. |
rs_uds_client_enable_pos_resp_suppression |
To enable/disable positive response suppression. |
rs_uds_client_req_upload |
To requests upload the data. |
rs_uds_client_req_response_on_event |
To requests a server to start or stop transmission of responses on a specified event. |
rs_uds_client_close |
To free the UDS Client handle. |
There are many functions through which the UDS client stack retrieves information from the application logic or indicate actions to be performed. These functions are captured in the below table.
Function |
Description |
|---|---|
rcb_uds_client_10h_diag_session_resp |
Called when response for a default session setup request is received |
rcb_uds_client_11h_ecu_reset_resp |
Called when response for ECU reset request is received |
rcb_uds_client_14h_clear_diag_info_resp |
Called when response for clear DTC request is received |
rcb_uds_client_22h_read_data_by_id_resp |
Called when response for read Data by ID is received |
rcb_uds_client_23h_read_mem_by_addr_resp |
Called when response for Memory by address is received |
rcb_uds_client_24h_read_scaling_data_by_id_resp |
Called when response for read scaling data by ID is received |
rcb_uds_client_27h_security_access_resp |
Called when response for secure access is received |
rcb_uds_client_28h_comm_ctrl_resp |
Called when response for communication control request is received |
rcb_uds_client_2eh_write_data_by_id_resp |
Called when response for write Data By ID is received |
rcb_uds_client_2fh_io_control_by_id_resp |
Called when response for control of given Data ID is received |
rcb_uds_client_31h_routine_control_resp |
Called when response for routine control is received |
rcb_uds_client_34h_download_data_resp |
Called when response for download request is received |
rcb_uds_client_36h_transfer_data_resp |
Called when response for transfer data is received |
rcb_uds_client_37h_transfer_exit_resp |
Called when response for exit transfer operation is received |
rcb_uds_client_3dh_write_mem_by_addr_resp |
Called when response for write by memory address is received |
rcb_uds_client_3eh_tester_present_resp |
Called when response for tester present is received |
rcb_uds_client_83h_access_timing_param_resp |
Called when response for access timing parameters is received |
rcb_uds_client_85h_control_dtc_setting_resp |
Called when response for control DTC setting is received |
rcb_uds_client_87h_link_control_resp |
Called when response for link control parameters is received |
rcb_uds_client_2ah_read_data_by_periodic_id_resp |
Called when a response to read data by periodic id is received |
rcb_uds_client_19h_read_dtc_info_resp |
Called when a response to read DTC information is received |
rcb_uds_client_transmit_confirm |
Called it indicate status of the last transmit operation |
rcb_uds_client_error_resp |
Called to indicate reception of error response for any request |
rcb_uds_client_35h_req_upload_resp |
Called when a response to upload data is received |
rcb_uds_client_86h_resp_on_event_resp |
Called when a response to response on event is received |
rcb_uds_client_2ch_ddid_resp |
Called when a response to dynamic define data ID is received |
These functions are documented in detail in the below sections. It is important for the client to implement these functions correct for proper operation of the system.
Implementation Guide
This section explains how the UDS server can be implemented using the RAPIDSEA stack. Whether the stack is available in source form or in binary form, the steps to be followed are
Implement the Callback functions mentioned above
Implement the underlying rs_can_* functions for DoCAN and rs_iso13400_* functions for DoIP as per the underlying hardware design as described in the CAN Interface page.
Initialize the buffers necessary for the operation
Initialize the CAN, ISO15765 and ISO14229 stack function for DoCAN and Ethernet socket , ISO13400 and ISO14229 fucction for DoIP .
Periodically call the process functions so that internal timeouts are handled.
If there is a need to send a request to ECU/server, send via rs_uds_client_req_* calls such as rs_uds_client_req_comm_control, rs_uds_client_req_clear_diag_info etc.
When the response from server is received, rcb_uds_client_* functions such as rcb_uds_client_14h_clear_diag_info_resp, rcb_uds_client_27h_security_access_resp are called.
On reception of negative response from server, rcb_uds_client_error_resp function is called.
Up on successful completion of transmission of request or failure to do so, rcb_uds_client_transmit_confirm is called with relevant reason code.

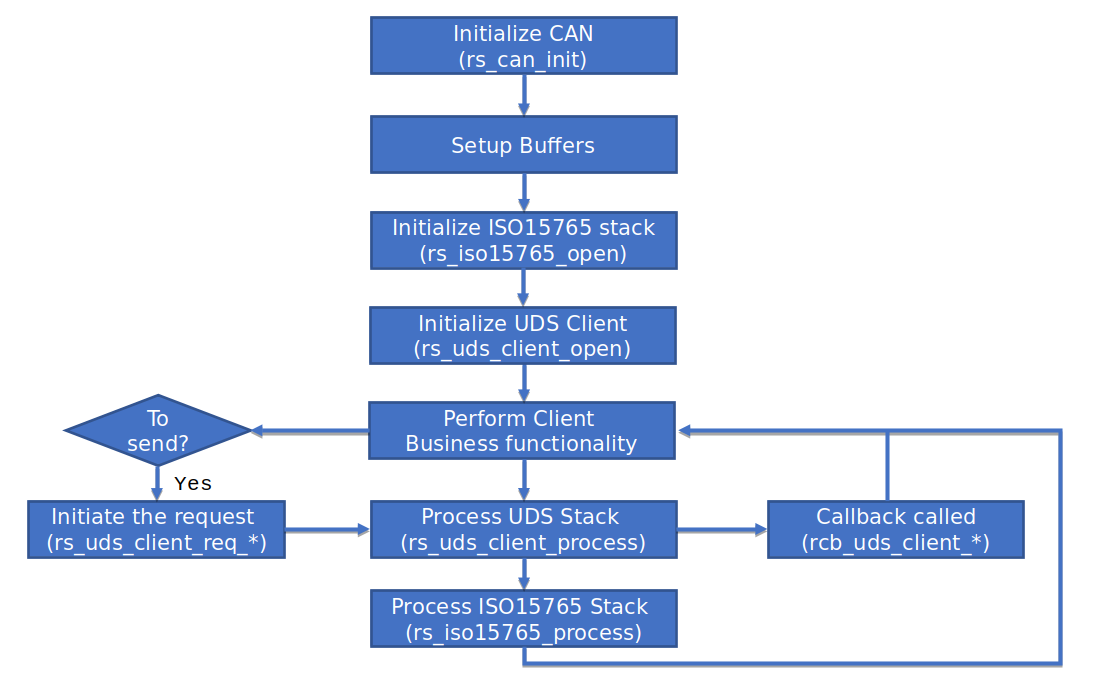

High level flow chart is depicted below for DoCAN:

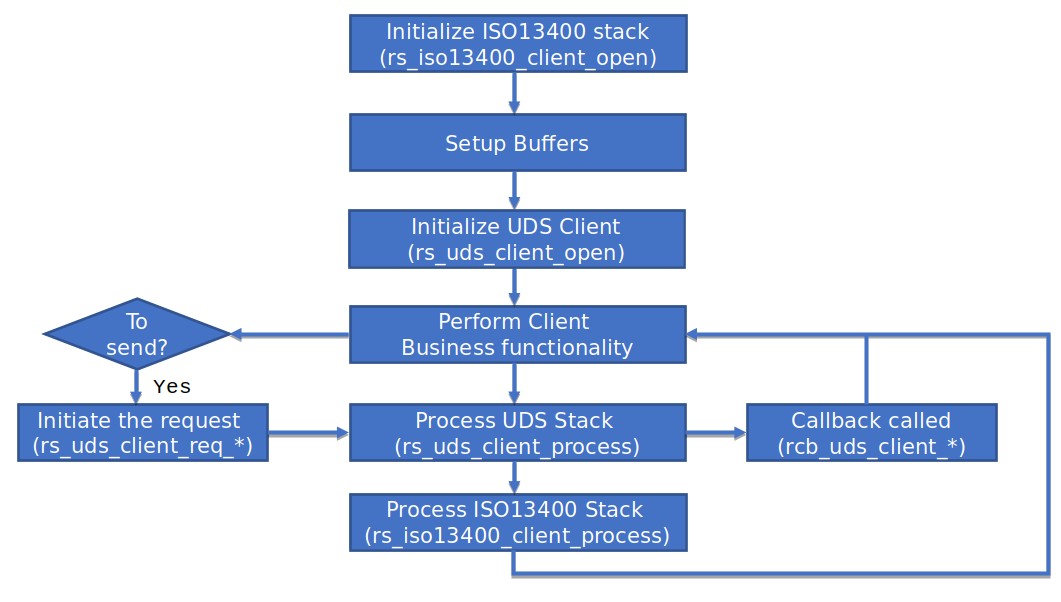

High level flow chart is depicted below for DoIP:
This can be implemented in a bare-metal system or over RTOS or over full fledged OS such as Linux etc.
Example demo
An example implementation is available along with the release and is described in DoCAN UDS Client Demo.
UDS Client Header
Documentation from the relevant header as follows:
Warning
doxygenfile: Cannot find file “rs_uds_client.h
