Servo motors are the backbone of precision motion control systems — from industrial robotics and factory automation to automotive actuators and medical devices. Their ability to provide accurate positioning, controlled velocity, and high torque makes them ideal for applications demanding deterministic and responsive motion.
We have worked extensively with embedded systems involving servo motor control across diverse domains. In this article, we take a deep dive into servo motor operating principles, explore the various control modes and motion profiles, and explain the critical role of a Servo Motor Manager in handling complex control scenarios within embedded systems.
For developers aiming to implement sophisticated motion control, this article will also introduce RAPIDSEA Suite’s servo control capabilities—offering proven, production-ready solutions that simplify development and improve reliability.
Understanding the Basics: What Is a Servo Motor?
A servo motor is a rotary or linear actuator that enables precise control of angular or linear position, velocity, and acceleration. It usually comprises:
- A DC or AC motor
- Feedback mechanism (like encoders or resolvers)
- Drive electronics to interface with controllers
The key distinguishing factor of a servo system is the closed-loop feedback. Unlike open-loop stepper motors, servo motors continuously monitor their output (position, speed) and adjust the control signal to minimize error.

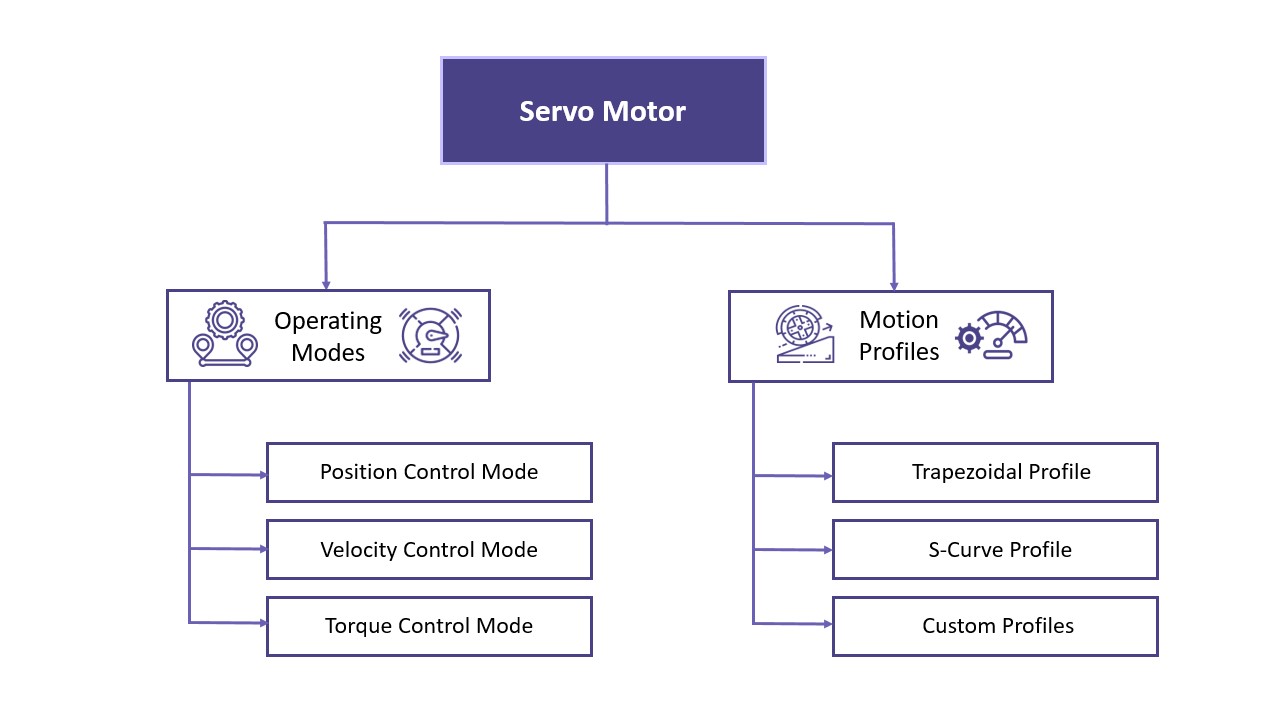

Servo Motor's Operating Modes and Motion Profiles
Servo Motor Operating Modes
Servo motors support multiple operating modes, which define how the motor should behave in response to a command:
1. Position Control Mode
- The motor moves to a specified position with high precision.
- Common in robotic arms, CNC machines, camera pan/tilt systems.
- Requires accurate encoder feedback and path planning.
2. Velocity Control Mode
- Maintains a specific rotational or linear speed.
- Used in conveyor belts, rollers, and spindles.
- Ideal when distance isn’t important, but consistent speed is.
3. Torque (Current) Control Mode
- Controls the output torque of the motor by adjusting current.
- Useful for force-sensitive applications like pressing or clamping.
- Often used in cooperative robotics and tension control systems.
These modes are often dynamically switchable, depending on application context, making servo motor management logic essential in embedded systems.
Motion Profiles in Servo Motor Control
In addition to control modes, servo motors rely on motion profiles to ensure smooth and safe transitions. A motion profile defines how the motor accelerates and decelerates between its start and end positions.
Common profiles include:
1. Trapezoidal Profile
- Linear acceleration → constant velocity → linear deceleration
- Simple and fast but can cause mechanical jerk
2. S-Curve Profile
- Smooth transitions with gradual acceleration and deceleration
- Reduces mechanical stress and vibration
- Common in high-precision and high-speed systems
3. Custom Profiles
- Based on application-specific requirements like load inertia or external synchronization
Choosing the right motion profile is crucial for ensuring machine longevity, operational safety, and energy efficiency.
Why You Need a Servo Motor Manager
As embedded systems grow in complexity, managing servo motors through ad-hoc control loops or scattered logic becomes risky and inefficient. That’s where a Servo Motor Manager becomes vital.
Functions of a Servo Motor Manager:
- Abstraction of Control Logic - Separates motion control from application logic. Developers simply define “what to do” rather than “how to do it.”
- Dynamic Mode Switching - Easily transition between position, velocity, and torque modes based on application context (e.g., startup, fault recovery, load change).
- Trajectory Planning - Supports complex motion sequencing, velocity profiling, and smooth acceleration.
- Fault Detection and Recovery - Detects encoder failure, position deviation, overcurrent, or mechanical stalling and initiates safe fallback strategies.
- Multi-Axis Coordination - Handles multiple servo motors working together — e.g., SCARA robots or 3D printers.
- PID Control Tuning Interface - Interfaces with tuning algorithms or GUI-based tools to optimize PID parameters dynamically.
By introducing a Servo Motor Manager, you create a modular, testable, and scalable framework for motion control in embedded products.
Embedded System Integration Considerations
For embedded developers implementing servo motor control, a few critical areas need attention:
- Real-Time Constraints - Motion commands and feedback must be processed deterministically. Using RTOS-based scheduling or dedicated motor control cores (e.g., on STM32, TI C2000) is essential.
- Feedback Integration - Encoders (incremental or absolute) or resolvers must be accurately read using quadrature decoder peripherals, timers, or external interface ICs.
- Hardware Abstraction Layer - Abstracting hardware like motor drivers (e.g., DRV series, L6234) and feedback sensors ensures portability and future expansion.
- Safety Mechanisms - Include watchdogs, emergency stop routines, current monitoring, and limit switches for safe operation in industrial settings.
RAPIDSEA Suite: Production-Ready Servo Motor Control
To address the challenges of servo motor control in embedded systems, Embien Technologies offers a proven Servo Motor Manager as part of the RAPIDSEA Suite.
Key Capabilities of RAPIDSEA Servo Manager:
- Supports all standard control modes (Position, Velocity, Torque)
- Built-in trapezoidal and S-curve motion profiling
- PID control with dynamic gain tuning support
- Abstract driver interface for multi-vendor motor drivers
- Fault handling and logging framework
- Works with RTOS and bare-metal environments
- Scalable to multi-axis systems
- Low resource footprint — optimized for microcontrollers
Whether you're developing an automated test jig, a robotic manipulator, or an electric vehicle controller, RAPIDSEA’s Servo Motor Manager can drastically reduce development time, improve reliability, and ensure consistent performance.
Use Cases of RAPIDSEA Servo Manager
In Industrial Automation application, it can be used to coordinate precise linear/rotary actuators across production lines. In Automotive Systems, it finds applications in controlling HVAC blend motors, seat positioning motors, or ADAS sensor actuators. In Robotics, Power multi-axis robotic arms with safe and accurate movements are managed by servos.
They enable silent, fast, and precise motion in printers, smart appliances, and more in Consumer Electronics.
Conclusion: Build Better Motion-Control Systems with RAPIDSEA
Servo motor control is at the core of many modern embedded applications. With the growing complexity of hardware and the need for precise, dynamic control, relying on hardcoded loops or vendor-specific firmware is no longer sustainable.
By adopting a modular, real-time Servo Motor Manager, you can ensure flexibility, robustness, and faster time-to-market.
We have encapsulated years of motion control expertise into our RAPIDSEA Suite — a scalable, customizable, and production-grade platform to manage all aspects of servo control.
