In today's technology-driven world, user experience (UX) has become paramount. This expectation isn't limited to smartphones and web applications; it's rapidly extending to the realm of embedded systems. Gone are the days when cryptic seven-segment displays and cumbersome button arrays sufficed. Modern embedded devices, spanning industries from healthcare to automotive and industrial automation, demand intuitive, engaging, and visually rich Amazing User Interfaces in Embedded Systems. The integration of sophisticated Graphics LCDs and Touch Panels is at the forefront of this evolution, transforming how users interact with these systems and unlocking new levels of functionality and usability.
The Imperative for Advanced UIs in Embedded Systems Across Industries
The demand for Amazing User Interfaces in Embedded Systems is growing as users expect the same level of intuition and visual quality they find in smartphones. This shift is driven by the need for enhanced usability, improved data visualization, and a more engaging user experience across various sectors.
Healthcare: Advanced UIs on Graphics LCDs and Touch Panels simplify complex medical equipment, improving caregiver efficiency and reducing potential errors. For instance, patient monitoring systems now display vital signs and historical data clearly, enabling faster decision-making.
Automotive: In-vehicle infotainment and control systems utilize graphical UIs to minimize driver distraction. Large Graphics LCDs and Touch Panels provide easy access to navigation, media, and vehicle settings, contributing to both safety and a richer user experience.
Industrial Automation: Human-Machine Interfaces (HMIs) with graphical displays empower operators to monitor and control complex machinery more effectively. Touch Panels allow for intuitive interaction with real-time data, process flow diagrams, and equipment status, boosting efficiency in manufacturing.
Consumer Electronics: From smart home devices to wearables, advanced UIs enhance the user experience by making devices more accessible and enjoyable to use. Graphics LCDs provide clear feedback and information, while Touch Panels offer seamless control.
Building Automation: Wall-mounted Touch Panels with graphical interfaces give building managers and occupants easy access to controls for lighting, HVAC, and security, leading to better energy management and comfort.
In all these cases, Graphics LCDs and Touch Panels are no longer a luxury but a necessity for creating modern, competitive, and user-friendly embedded products.
Key Variants and Technologies: A Closer Look
The choice of Graphics LCDs and Touch Panels is crucial for balancing cost, performance, and power consumption. A diverse range of technologies exists to meet different application needs.

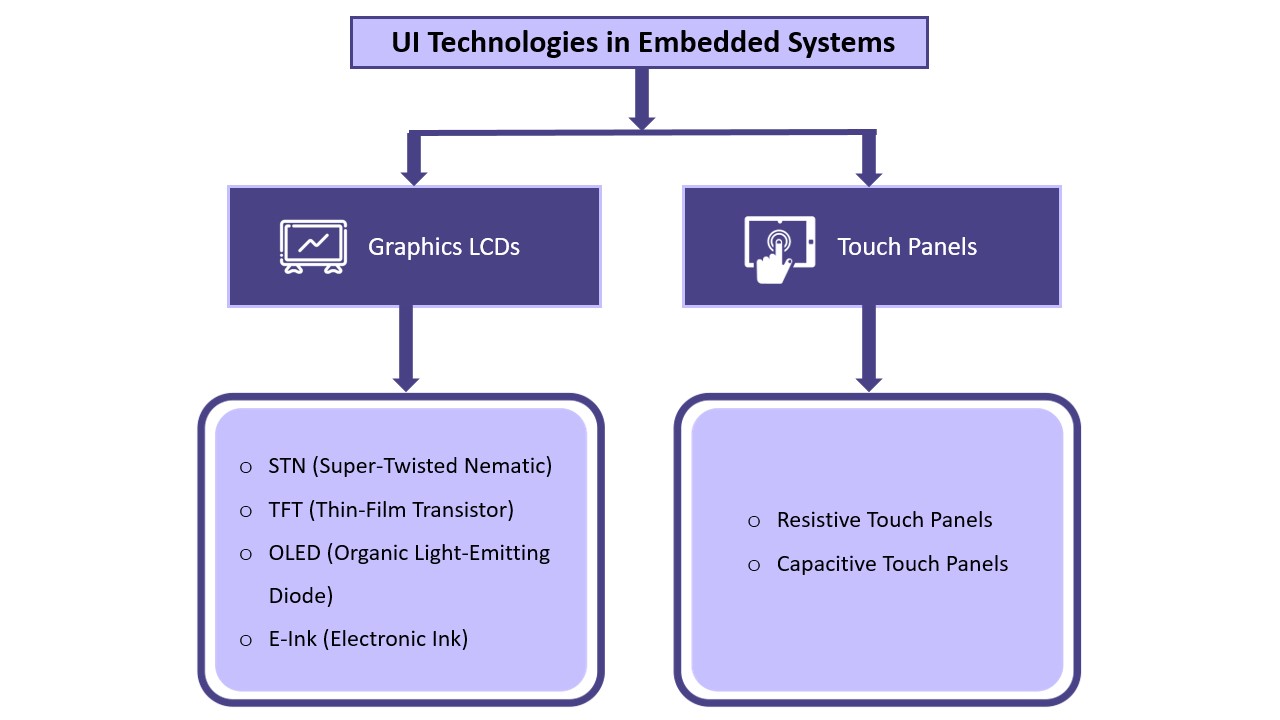

UI Technologies in Embedded Systems
Graphics LCDs
STN (Super-Twisted Nematic): A cost-effective, low-power option with moderate performance. Variants like CSTN (for limited color) and FSTN (for improved contrast) are used in basic, non-critical applications where cost is the main driver.
TFT (Thin-Film Transistor): The industry standard for modern displays, offering superior brightness, color, and contrast.
- TN (Twisted Nematic): The most common and affordable TFT type, known for fast response times but limited viewing angles.
- IPS (In-Plane Switching): Provides excellent color accuracy and wide viewing angles, making it a premium choice for high-end devices.
- VA (Vertical Alignment): Offers a strong balance with high contrast and deep blacks, a popular choice for monitors and TVs.
OLED (Organic Light-Emitting Diode): Emissive displays where each pixel generates its own light, leading to perfect blacks, infinite contrast, and exceptional power efficiency on dark screens.
- PMOLED (Passive-Matrix OLED): A simple, low-cost OLED for small, low-resolution displays.
- AMOLED (Active-Matrix OLED): The advanced version used in high-end devices, providing high resolution and vibrant, crisp imagery.
E-Ink (Electronic Ink): A unique, highly power-efficient reflective display that only consumes power when the image changes. It offers excellent readability in direct sunlight, ideal for e-readers and other static-display applications.
Touch Panels
There are primarily two key types of touch panel technologies.
Resistive Touch Panels: These panels consist of multiple layers, with a thin gap between conductive layers. When touched, the layers are pressed together, registering the touch. Resistive touch panels are durable, work with gloved hands or styluses, and are relatively inexpensive. However, they offer lower optical clarity (due to multiple layers) and are susceptible to damage from sharp objects.
Capacitive Touch Panels: These panels rely on the capacitive properties of the human body. A conductive layer on the screen's surface is coated with a protective layer. When a finger touches the screen, it creates a change in the electrical field, which is detected by sensors. Capacitive touch panels offer excellent optical clarity, multi-touch capabilities, and high sensitivity. However, they typically don't work with thick gloves or passive styluses. Different capacitive technologies include surface capacitive and projected capacitive (PCAP). PCAP is the more prevalent type, offering superior multi-touch and gesture recognition.
Connectivity Options: Bridging the Gap
Integrating Graphics LCDs and Touch Panels with embedded systems requires careful consideration of the connectivity interfaces. Common options include:
Parallel RGB: A widely used interface for connecting Graphics LCDs, it transmits color data and control signals in parallel. While offering high data throughput, it requires a significant number of pins on the microcontroller.
MIPI (Mobile Industry Processor Interface): Standards like MIPI-DSI (Display Serial Interface) and MIPI-CSI (Camera Serial Interface) offer high-speed serial interfaces for displays and cameras, respectively. They reduce the pin count compared to parallel interfaces and are increasingly popular in modern embedded systems.
SPI (Serial Peripheral Interface): Often used for smaller Graphics LCDs or as a control interface for larger displays, SPI is a synchronous serial communication protocol that requires fewer pins than parallel interfaces but has lower data throughput.
I²C (Inter-Integrated Circuit): Primarily used for control and configuration of display modules or for interfacing with capacitive touch controllers.
USB (Universal Serial Bus): Can be used to connect external display adapters or touch controllers in some embedded systems.
LVDS (Low-Voltage Differential Signaling): A high-speed serial interface commonly used for larger Graphics LCDs in automotive and industrial applications, offering good noise immunity.
For Touch Panels, the connectivity often depends on the technology used. Resistive touch panels typically use analog signals or simple digital interfaces. Capacitive touch panels often communicate via I²C or USB, transmitting touch coordinates and gesture information.
Silicon Vendor Variations and the Need for a Common HAL
Microcontroller and microprocessor vendors offer a wide range of peripherals to interface with Graphics LCDs and Touch Panels. However, the implementation details, register configurations, and driver requirements can vary significantly between different vendors and even across different product families within the same vendor. This fragmentation poses a challenge for embedded developers who may need to port their applications to different hardware platforms.
The need for a common Hardware Abstraction Layer (HAL) platform becomes evident in this context. A well-designed HAL provides a consistent API (Application Programming Interface) for accessing the underlying hardware peripherals, abstracting away the vendor-specific details. This allows developers to write more portable and maintainable code, reducing development time and effort when migrating to different hardware.
Conclusion: Empowering Embedded Development with RAPIDSEA Suite
The integration of Amazing User Interfaces in Embedded Systems through Graphics LCDs and Touch Panels is revolutionizing how users interact with embedded devices across diverse industries. While the possibilities are vast, navigating the complexities of hardware integration and vendor-specific implementations can be time-consuming and challenging.
This is where our RAPIDSEA Suite steps in. Our proven HAL abstraction layer provides a unified and consistent interface for interacting with various Graphics LCD and Touch Panel controllers, regardless of the underlying silicon vendor. This abstraction significantly simplifies peripheral implementation, allowing developers to focus on their application logic rather than low-level hardware details. Furthermore, RAPIDSEA Suite offers a robust socket interface, facilitating seamless communication and data exchange within your embedded system and with external networks.
Once the interfaces are up, Sparklet UI library can be used to create graphics flow.
Embrace the power of visual experiences in your next embedded product. Leverage RAPIDSEA Suite's comprehensive tools and abstractions to accelerate your development process, reduce complexity, and create truly amazing user interfaces.
Explore our documentation and discover how RAPIDSEA Suite can empower your embedded development journey:
- RAPIDSEA Suite HAL Documentation: https://www.rapidseasuite.com/documentation/rapidsea/
- RAPIDSEA Suite Socket Interface Documentation: https://www.rapidseasuite.com/documentation/rapidsea/interfaces/socket.html
