The automotive world has seen a dramatic shift in recent decades, transitioning from purely mechanical systems to highly complex, software-driven architectures. Amidst this transformation, On-Board Diagnostics (OBD) has played a foundational role in ensuring the reliability, compliance, and serviceability of modern vehicles. Specifically, OBD-II (OBD2) has become the global standard for emission-related diagnostics, offering critical insights into the vehicle's health and enabling faster identification and resolution of issues.
As vehicles grow smarter and more connected, the implementation of a robust OBD2 stack becomes essential. We empower embedded system developers with our production-grade automotive software suite, RAPIDSEA, which includes full support for the OBD-II protocol over CAN. In this blog post, we’ll explore the importance of on-board diagnostics, provide an overview of the OBD2 protocol, discuss how it works within vehicles, and show how RAPIDSEA makes it easier to implement and maintain standards-compliant OBD systems.
The Growing Need for On-Board Diagnostics
Modern vehicles consist of dozens of interconnected Electronic Control Units (ECUs) managing everything from engine performance to safety systems. As such, identifying faults and maintaining operational integrity across these distributed systems is no small feat. This is where on-board diagnostics (OBD) comes into play.
Introduced to monitor emission-related systems, OBD has evolved into a comprehensive framework for vehicle health monitoring. OBD-II, the second generation of this standard, is mandatory in all vehicles sold in the US since 1996, and widely adopted globally in regions including the EU, China, and India.

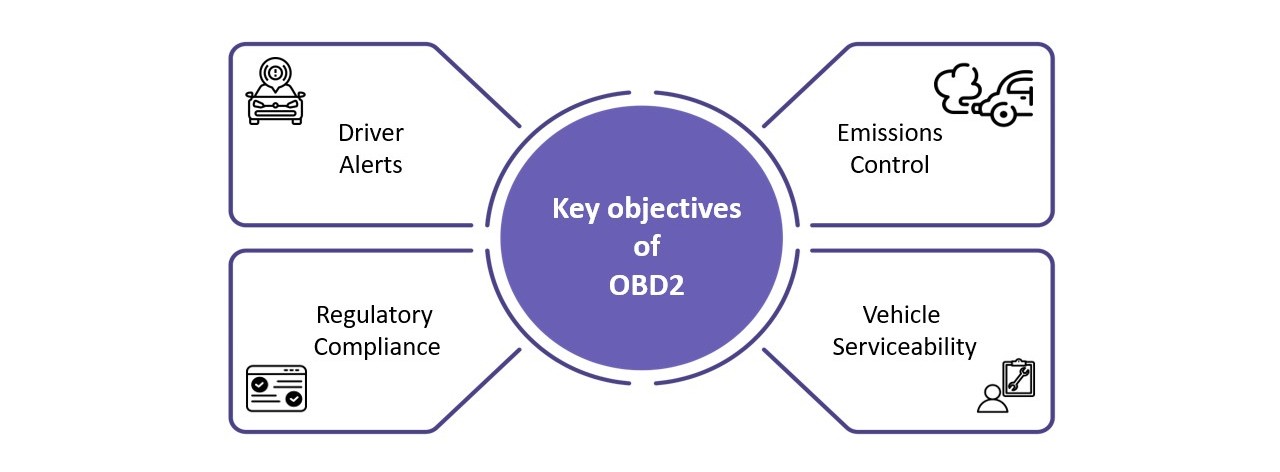

Key objectives of OBD2 include:
Emissions Control: Detect malfunctioning components that could increase emissions.
Vehicle Serviceability: Enable technicians to diagnose problems quickly and accurately.
Regulatory Compliance: Provide standardized interfaces and fault codes (DTCs) for environmental authorities.
Driver Alerts: Activate the “Check Engine Light” or Malfunction Indicator Lamp (MIL) in case of faults.
But building an OBD2-compliant system isn’t simple — and the stakes are high. Non-compliance can lead to regulatory penalties, failed certifications, and expensive redesigns.

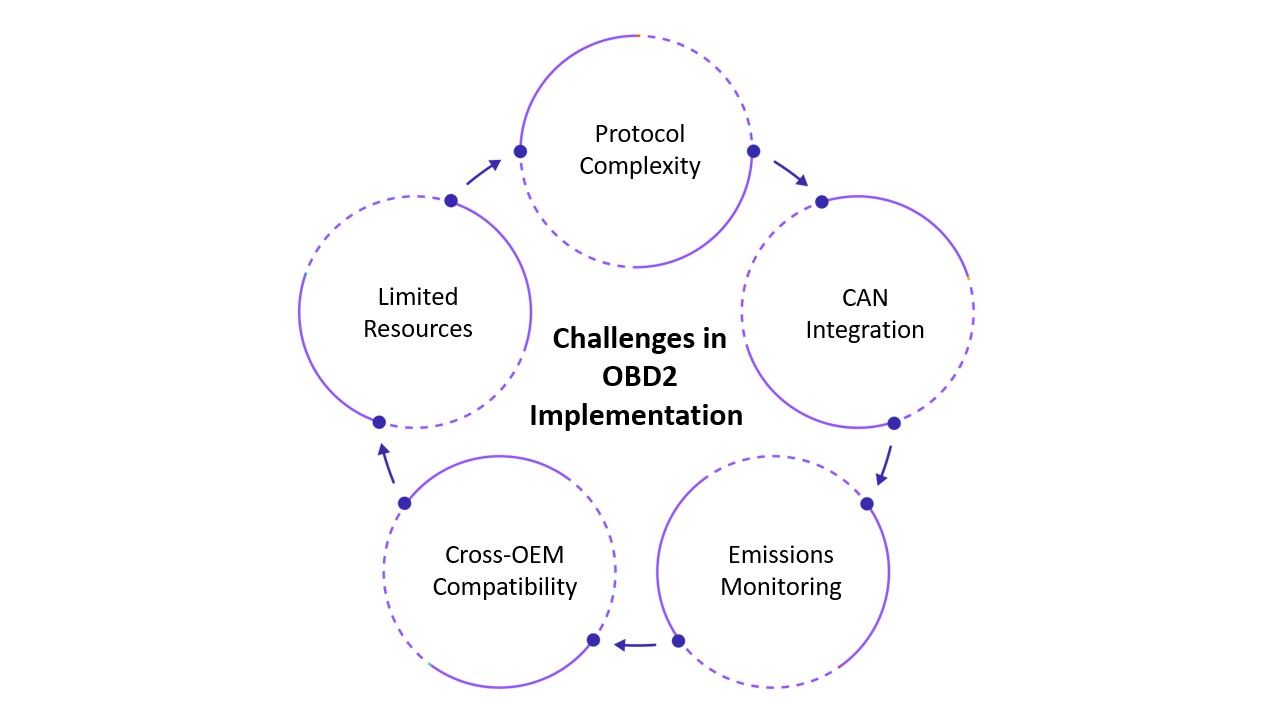

Challenges in OBD2 Implementation
Developing a fully functional OBD2 system involves addressing a number of technical and regulatory challenges:
Protocol Complexity: OBD2 specifies various modes, PIDs (Parameter IDs), and Diagnostic Trouble Codes (DTCs), each with strict timing, formatting, and behavioral expectations.
CAN Integration: OBD2 messages are typically transported over the CAN bus using ISO 15765-4, requiring conformance with the broader CAN network architecture.
Emissions Monitoring: Accurate detection and reporting of emission-related faults are critical and must be validated using In-Use Performance Ratio (IUPR).
Cross-OEM Compatibility: Diagnostic tools must work across all vehicle brands, which mandates strict adherence to protocol standards like SAE J1979 and ISO 15031.
Limited Resources: Many ECUs operate under constrained conditions, requiring memory-efficient and CPU-friendly implementations of OBD2 services.
These challenges highlight the need for a robust, field-tested software stack like RAPIDSEA to reduce complexity, ensure compliance, and accelerate time-to-market.
OBD2 Protocol: An Overview
The OBD2 protocol, primarily governed by SAE J1979, defines a standardized set of diagnostic services that allow a scan tool or tester to retrieve information from the vehicle's ECUs. This includes both real-time sensor data and stored diagnostic information.
OBD2 defines several diagnostic modes, each corresponding to specific services:
- Mode 01 – Show current data (e.g., RPM, throttle position, temperature sensors)
- Mode 02 – Freeze frame data at time of fault
- Mode 03 – Request stored DTCs
- Mode 04 – Clear stored DTCs and reset MIL
- Mode 05/06 – Monitor and test results for oxygen sensors and onboard monitoring
- Mode 07 – Request pending DTCs
- Mode 09 – Vehicle information (e.g., VIN, calibration ID)
Each mode is further refined using PIDs (Parameter Identifiers) that specify exactly what data is being requested or transmitted. For instance, PID 0C under Mode 01 represents the engine RPM.
These messages are transmitted using ISO 15765-4, a CAN-based transport layer that uses the familiar multi-frame ISO-TP format to handle messages longer than 8 bytes.
A Glimpse into OBD2 Packet Flow
Let’s look at a simplified example of how a scan tool communicates over OBD2 using CAN:
Request: A scan tool sends a CAN frame with ID 0x7DF (functional request) and data like [0x02, 0x01, 0x0C, 0x00, 0x00, 0x00, 0x00, 0x00]. This is a Mode 01 request for PID 0C (RPM).
Response: ECUs that support the requested PID respond with their unique CAN IDs (e.g., 0x7E8), sending data such as [0x04, 0x41, 0x0C, 0x1A, 0xF8, 0x00, 0x00, 0x00].
Interpretation: The response payload indicates that the RPM is (0x1A * 256 + 0xF8)/4 = 1726 RPM.
This standardization enables universal diagnostic tools to interpret responses regardless of the vehicle manufacturer, provided the ECU supports the corresponding PIDs.
RAPIDSEA Suite: Production-Grade OBD2 Implementation
To ease the adoption of OBD2 in automotive ECUs, we offer a fully integrated and standards-compliant OBD2 stack as part of the RAPIDSEA Suite.
Key Features of RAPIDSEA’s OBD2 Support:
- Compliance with SAE J1979, ISO 15031, and ISO 15765-4
- Support for all standard modes and extensible for OEM-specific services
- ISO-TP based CAN transport with configurable frame timing and segmentation
- Pre-integrated DTC and MIL handling
- Support for emission monitoring and IUPR tracking
- Seamless integration with UDS stack for shared DTC memory
- Compact footprint, ideal for resource-constrained ECUs
- Diagnostic Tool Compatibility: Validated with OBD scan tools like Torque, Bosch KTS, and Autel MaxiSys
The modular architecture of RAPIDSEA allows developers to selectively enable services and easily map the protocol to the existing application and sensor data.
Designed for Embedded Developers
RAPIDSEA has been built from the ground up for embedded system developers working on automotive-grade ECUs. Its well-documented APIs, layered architecture, and configurability ensure a smooth integration process — whether you’re building a powertrain controller, body ECU, or a gateway module.
We offer Detailed integration guides, Example applications and test scripts, Conformance testing and certification support, Support for AUTOSAR and non-AUTOSAR environments, Cross-platform compatibility across leading automotive MCUs, etc.
Explore the RAPIDSEA OBD2 Documentation.
Conclusion: Streamline OBD2 Compliance with RAPIDSEA
With regulatory standards tightening and vehicle complexity growing, implementing OBD2 correctly and efficiently is more critical than ever. Whether it’s for emission compliance, serviceability, or customer satisfaction, a reliable and compliant OBD2 stack is indispensable.
Embien Technologies’ RAPIDSEA Suite offers a mature, configurable, and production-ready OBD2 implementation that reduces time-to-market, ensures regulatory compliance, and simplifies development for embedded teams.
If you're building ECUs for the next generation of vehicles, leverage RAPIDSEA to confidently deliver OBD2-compliant diagnostics — and stay ahead in the competitive automotive landscape.
